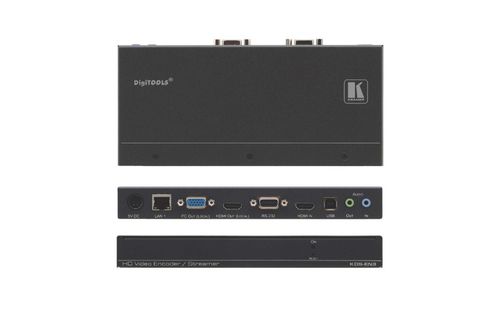

Kramer H.264-based encoder for HDMI signals up to 1080p60. - KDS-EN3

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

H.264 Encoder, Recorder & Streamer

The Kramer KDS?EN3 is an H.264 encoder for HDMI signals up to 1080p60. The KDS?EN3 provides unicast (one?to?one) or multicast (one?to?many) streaming to the KDS?DEC3 decoder or computers running VLC© software. KDS?EN3 can also record content to a network drive for later access.

Key Features

AVC Support - MPEG–4 using H.264 & AAC codecs.
Built–in Scaling and Frame Rate Control - For lower bandwidth consumption when distributing over the network.
Open Encoding - Enable software decoding through VLC® player software.
Standard Ethernet Network Operation - 10/100/1000Mb.
Video Support - HDMI.
Audio Support - HDMI or analog.
Streaming Support - Unicast and multicast through RTSP (Real Time Streaming Protocol).
KDS–EN3 Manager Software - Allows remote management of the KDS–EN3 network including auto–detection and discovery of KDS–EN3/KDS–DEC3 units on a subnet.
Manual & Scheduled Recording - To network storage option on encoders.
RS–232 Virtualization - From encoder to decoder.

Specifications

INPUTS	1 HDMI, 1 unbalanced stereo audio on a 3.5mm mini jack (line in)
OUTPUTS	1 HDMI, 1 VGA on a 15–pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack
PORTS	1 Ethernet on an RJ–45 connector, 1 RS–232 on a 9–pin D–sub connector
VIDEO SINGLE CHANNEL HD	Up to 1920x1080p60 and 1920x1200(60Hz)
COMPRESSION STANDARD	H.264/Mpeg4 Part 10 (AVC)
PROFILES	Baseline, Main, High
LEVELS	Up to 4.2
BIT RATES	100Kbps to 25Mbps 96, 128, 192, and 256Kbps
RATE CONTROL	CBR, VBR, adjustable GOP (Group Of Pictures) size
AUDIO COMPRESSION STANDARD	MPEG4 AAC–LC
CHANNELS	2 channel (stereo), HDMI with digital L–PCM audio
ANALOG SAMPLE FREQUENCY	32, 44.1, and 48kHz
INPUT RESOLUTIONS	1920×1200, 1920×1080, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, and 640×480
OUTPUT RESOLUTIONS	1920×1200, 1920×1080, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1360×768, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 720×576, 720×480, and 640×480
MAXIMUM UNICAST CONNECTIONS	8
POWER CONSUMPTION	5V DC, 3A max
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, power cord, plastic bracket set
PRODUCT DIMENSION	21.50cm x 10.00cm x 2.60cm (8.46" x 3.94" x 1.02" ) W, D, H
PRODUCT WEIGHT	0.4kg (0.8lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.2kg (2.6lbs) approx.
