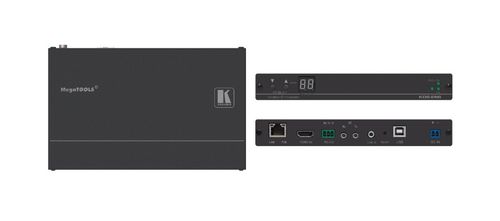

Kramer 4K30 HDCP 2.2 proprietary codec transmitter. - KDS-EN6

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDCP 2.2 Video Encoder

The KDS?EN6 encoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS?232, USB over IP with HDCP 2.2 in unicast (one?to?one) or multicast (many?to?many) configurations.

Key Features

Video Support - HDMI 4K@60Hz (4:2:0).
Audio Support - HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio.
Virtualization - IR, USB, RS–232 over IP.
Network - Switch 1G multicast IGMP snooping managed layer 2.
Power - PoE or external power supply (not included).
Control - Kramer Network, Web UI, API.
HDCP - 2.2 compliance.
Video Effects - Video Wall - 1 to 256 screens.

Specifications

INPUTS	1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack (line in), 1 RS–232 on terminal block connectors, 1 USB (type B) port, 1 IR on 3.5mm mini jack (Rx)
OUTPUTS	1 Ethernet (LAN/PoE) on an RJ–45 connector, 1 IR on 3.5mm mini jack (Tx)
NETWORK	10M/100M/1000M
NETWORK SWITCH	1G multicast, IMGP snooping non–blocking, Layer 2
STREAMING	Unicast and multicast through RTSP (Real Time Streaming Protocol)
CONTROLS	Reset button, up and down channel buttons, channel 7–segment display, STATUS, LINK and ON LEDs
IR	Wide–band 20kHz to 60kHz bidirectional IR transmission
VIDEO ENCODING/DECODING	Compression standard JPEG 2000
HDCP	HDCP 2.2
SCALING AND CROPPING	Built in scaling and cropping for flexible display of source content on the decoder output
BIT RATES	Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
RESOLUTION	4096x2160@60Hz, 3840x2160@60Hz, 1920×1200@60Hz, 1920×1080@60Hz, 1864x1050@60Hz, 1856x1392@60Hz, 1792x1344@60Hz, 1728x1080@60Hz, 1704x960@60Hz, 1680×1050@60Hz, 1600×1200@60Hz, 1600x1050@60Hz, 1600×900@60Hz, 1536x960@60Hz, 1440×900@60Hz, 1440x576@60Hz, 1440x480@60Hz, 1400×1050@60Hz, 1366x768@60Hz,1360×768@60Hz, 1280×1024@60Hz, 1280×960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1280×720@60Hz,1224x768@60Hz, 1152x864@60Hz, 1152x720@60Hz, 1024×768@60Hz, 1064x600@60Hz, 1024x384@60Hz, 960x600@60Hz, 848x480@60Hz, 800×600@60Hz, 768x480@60Hz, 720×576@60Hz, 720×480@60Hz, and 640×480@60Hz, 640x400@60Hz, 640x350@60Hz
AUDIO ENCODING/DECODING	Compression standard (analog in/out): AAC–LC
CHANNELS (HDMI EMBEDDED AUDIO)	PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True–HD,DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS–HD Master Audio
POWER OPTIONS	PoE, external power supply (not included)
POWER CONSUMPTION	48V DC, 140mA max
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
OPTIONAL ACCESSORIES	IR cable (PN: 3500–900617), external DC power supply (PN: 100–800070)
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT	0.6kg (1.2lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT	0.8kg (1.7lbs) approx.
