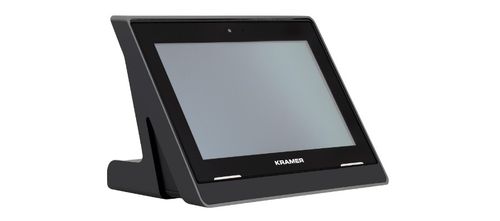

Kramer Secured 7" S1 tabletop/in-wall Black Touch Panel - KT-107S
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Secured 7–Inch Wall & Table Mount PoE Touch Panel
KT?107S is a highly secured 7?inch IPS multi?touch, powerful touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either tabletop or on?wall, mounted inside standard in?wall junction boxes. KT?107S supports wired Power over Ethernet (PoE) resilient connectivity. The touch panel comes with table and wall mounts for easy installation, secured mounting, and flexible deployment. KT?107S is an Android?based touch panel that is ideal for any 24/7 Kramer?supported commercial AV or control application and features a user?friendly, fully customizable graphical user interface configured by Kramer software.
Key Features- High Security Operation - Touch panel specially designed for highly secured deployment applications, with no camera, microphone, Wi–Fi and Bluetooth wireless connectivity.
- Elegant Design - Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options.
- Easy Installation - Single Ethernet cable for connectivity and powering, flexible package–included table and wall mounts that fit into standard market–available 2–gang in–wall junction boxes and simple wired USB peripheral add–on connectivity to either mounting options with package–included USB cable.
- Reliable Operation - Seamless, non–service affecting switching between PoE, PSU and battery powering resiliency options.
- Secured Deployment - Flexible, invisible panel and mounts, screwing and locking options to prevent unwanted displacement, secured applications operation with various unauthorized exit protection options.
- Hi–quality User Experience - IPS 1280x800 hi–resolution screen with ±80° horizontal and vertical wide viewing angles, built–in lighting sensor for auto–adaptable brightness, with advanced 10 multi–touch points and 2 finger gesture capabilities.
- Powerful Processing - Quad–core CPU, GPU, 2GB RAM, 16GB ROM processing performance, smoothly running complicated media and graphics rich applications, such as H.265 video and audio streams encoding and decoding.
- Flexible Services - Advanced Android 6.0 Operating System with rich Kramer and market–available applications from cloud/store offerings, such as K–Touch Control and EventBoard Scheduling applications.
Specifications
TABLETOP MOUNT PORTS | 1 1000/100/10BaseT Ethernet on RJ–45 connector, 1 micro USB 2.0, 2–pin terminal block for DC power supply |
ON-WALL MOUNT PORTS | 1 1000/100/10BaseT Ethernet on RJ–45 connector, 2–pin terminal block for DC power supply |
SPEAKERS | 2x1W, 8? |
CPU PERFORMANCE | 1.6GHz Quad Core, GPU, 2GB RAM, 16GB flash |
OS SOFTWARE | Android 6.0.1 |
MULTI TOUCH | 10 points, 2–finger gesture |
DISPLAY | 7" IPS, 1280x800 RGB pixels, 16:10 aspect ratio, ±85° horizontal/vertical viewing angles, 400cd/m2 brightness, 800:1 contrast ratio |
VIDEO DECODING FORMAT | HEVC/H.265, H.264, H.263, MPEG–1/2/4, VC–1, VP6/8, RV8/9/10, AVS, MVC, Sorenson Spark, M–JPEG |
VIDEO ENCODING FORMAT | H.264, MVC, VP8, M–JPEG |
ETHERNET PORT | 10/100/1000Mbps PoE LAN |
BATTERY | Rechargeable, supports up to 3 hours of offline operation |
CONTROLS | Hidden Reset button, power button (ON/OFF), volume up button |
TOUCH PANEL STATUS LED | Flashes green during charging, steady green for full charging |
POWER INPUTS | Power over Ethernet (complies with IEEE802.3af and IEEE802.3at PoE standards), power supply unit |
POWER CONSUMPTION | 5V DC, 3A |
OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
STORAGE TEMPERATURE | –10° to +55°C (14° to 131°F) |
HUMIDITY | 10% to 90%, RHL non–condensing |
CASE DESIGN | Black body and cover |
INCLUDED ACCESSORIES | Power supply unit adapter (5V, 4.0A AC/DC), tabletop mount, on–wall mount unit, panel–mount plate, right–angle OTG USB cable, installation screws |
CERTIFICATIONS | CE/CB, FCC, ROHS, REACH |
MOUNTING OPTIONS | Table top (with docking station), on–wall (with mount unit and panel mount plate) |
PRODUCT DIMENSION | 17.80cm x 13.00cm x 1.30cm (7.01" x 5.12" x 0.51" ) W, D, H |
PRODUCT WEIGHT | 0.4kg (0.8lbs) approx. |
SHIPPING DIMENSION | 22.40cm x 20.60cm x 13.00cm (8.82" x 8.11" x 5.12" ) W, D, H |
SHIPPING WEIGHT | 1.8kg (4.0lbs) approx. |
