Kramer MM 10G 850nm 1Km fiber SFP+ - OSP-MM1

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

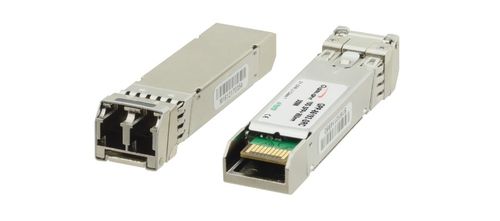

Optical MM 850nm 10G SFP+ Transceiver

OSP?MM1 is a fiber optic transceiver for 850nm multimode signals. This standard pluggable SFP+ optical module has two LC connectors for reception and transmission of signals over two strands of multimode optical fiber.

Certified Transceiver - Kramer certified, hot–pluggable SFP+ optical module, for high–quality transmission of 10.2Gbps signal over multimode fiber cables, connecting 2 simplex multimode fiber strands via LC AP/UPC connectors.

Specifications

OPTICAL LINE	Multi–mode G.651.1 compliant OFNR fiber
PORTS	2–strand simplex fiber optic LC(PC/UPC) connector Note: Do not use with LC(APC) cable connectors
MAX. REACH	3km (1.8 miles) over OM3 MM fiber
NOMINAL PEAK WAVELENGTH	850nm
MAX. DATA RATE	10.2Gbps
TRANSMITTER TYPE	VCSEL
OPTICAL TYPICAL TRANSMISSION POWER	–2.5dBm
OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY	–11.1dBm
OPTICAL TYPICAL MAXIMUM LOSS BUDGET	8.6dB
STANDARDS COMPLIANCE	IEEE 802.3ae, SFF–8431
LASER SAFETY COMPLIANCE	Laser Class I
REGULATORY CERTIFICATIONS	FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024
POWER CONSUMPTION	1W
OPERATING TEMPERATURE	0° to 70°C
STORAGE TEMPERATURE	–40° to 85°C
HUMIDITY	5% to 95% RH
PRODUCT DIMENSION	1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H
SHIPPING DIMENSION	12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H
SHIPPING WEIGHT	0.1kg (0.1lbs) approx.
