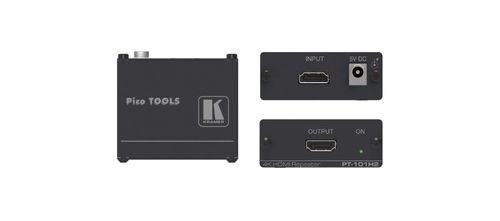

Kramer 4K@60 HDMI repeater - PT-101H2

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K HDR HDMI Repeater

PT?101H2 is a high?performance 4K HDR repeater and extender for HDMI 2.0 and HDCP 2.2 signals. For 4K@30Hz, it extends the range up to 20m (66ft) (15m to the input, 5m from the output).

Key Features

Max. Resolution - 4K@60Hz (4:4:4).
Range Extension - 4K@60Hz (4:4:4) up to 10m (33ft), (5m on the input to the PT–101H2 and 5m on the output); 4K@30Hz (4:4:4) up to 20m (66ft) (15m on the input to the PT–101H2 and 5m on the output).
Max. Data Rate - 17.82Gbps (5.94Gbps per data channel).
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HDMI Output Power Follows Input.
HDR (High Dynamic Range) Support.
Transparent HDMI 2.x and HDCP 2.2 Support.

Specifications

INPUT	1 HDMI on an HDMI connector
OUTPUT	1 HDMI on an HDMI connector
MAX. DATA RATE	Supports up to 17.82Gbps (5.94Gbps per graphic channel
MAX. RESOLUTION	Up to 4K @60Hz 4:4:4
COMPLIANCE WITH HDMI STANDARD	HDR10, HDMI 1.4, HDMI 2.0, HDCP 1.4, HDCP 2.2
INDICATOR LED	ON
POWER SOURCE	5V DC, 230mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminium
RACK MOUNT	With optional adapter
FURNITURE MOUNT	With included rubber feet
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
REGULATORY COMPLIANCE	CE
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES	Power supply 5.2V DC 2A
OPTIONS	RK–4PT 19" rack adapter
WARRANTY	7 years parts and labor
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
