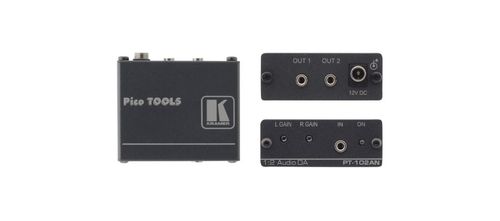

Kramer 1:2 Stereo Audio Distribution Amplifier - PT-102AN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:2 Stereo Audio Distribution Amplifier

The PT-102AN is a high-performance audio distribution amplifier for unbalanced stereo signals. The unit takes one stereo input and distributes the signal to two identical stereo outputs.

Key Features

Level (Gain) Controls.
S/N Ratio - 85dB.
Ultra–Compact Pico TOOLS™ - 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.

Specifications

INPUT	1 unbalanced stereo audio on a 3.5mm mini jack
OUTPUTS	2 unbalanced stereo audio on 3.5mm mini jacks
MAX. OUTPUT LEVEL	5Vpp
BANDWIDTH (-3DB)	>100kHz
S/N RATIO	85dB @1kHz
CONTROLS	Level: - 55dB to +20dB
COUPLING	AC
AUDIO THD + NOISE	0.01% @1kHz
AUDIO 2ND HARMONIC	0.004% @1kHz
POWER CONSUMPTION	12V DC, 20mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.4kg (0.8lbs) approx.
