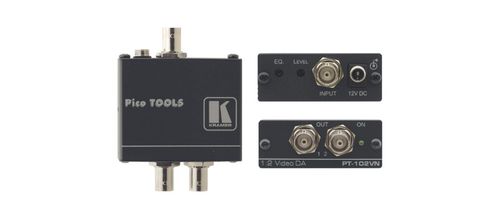

Kramer 1:2 Composite Video Distribution Amplifier - PT-102VN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:2 Composite Video Distribution Amplifier

The PT?102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.

Key Features

High Bandwidth - 430MHz (–3dB).
Level (Gain) and EQ (Peaking) Controls.
Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.

Specifications

INPUTS	1 composite or SDI video, 1Vpp/75? on a BNC connector
OUTPUTS	2 composite or SDI video, 1Vpp/75? on BNC connectors
MAX. VIDEO OUTPUT	2Vpp
VIDEO BANDWIDTH (-3DB)	430MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.05Deg
K-FACTOR	<0.05%
S/N RATIO	76.1dB
CONTROL	Gain: - 1.2 to +6dB EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel
POWER CONSUMPTION	12V DC, 35mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.3lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.2lbs) approx.
