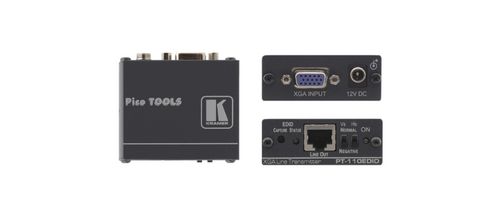

Kramer Computer Graphics Video Over Twisted Pair Transmitter with E - PT-110EDID

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Computer Graphics Video over Twisted Pair Transmitter with EDID

The PT-110EDID is a twisted pair transmitter for computer graphics video signals. It converts a computer graphics signal into a twisted pair signal that is converted back to a computer graphics video signal when used with a compatible receiver.

Key Features

Max. Resolution - WUXGA & 1080p.
HDTV Compatible.
EDID Capture - Copies and stores the EDID from a display device.
Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs.
System Range - Up to 100m (320ft). Greater distances possible depending on resolution and cable.
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.

Specifications

INPUT	1 VGA/UXGA on a 15–pin HD connector
OUTPUT	1 RJ–45 LINE OUTPUT connector
RESOLUTION	Up to WUXGA & 1080p
S/N RATIO	69dB (worst case)
COUPLING	AC
POWER CONSUMPTION	12V DC, 320mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–4PT 19–inch rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	17.40cm x 12.00cm x 8.60cm (6.85" x 4.72" x 3.39" ) W, D, H
SHIPPING WEIGHT	0.4kg (1.0lbs) approx.
