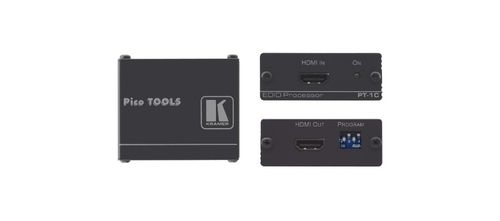

Kramer EDID Processor - PT-1C

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K HDR HDMI EDID Processor

PT?1C is a 4K HDR EDID processor. It allows you to lock EDID signals and to support or not support HDCP, multi?channel audio or deep color signals that may or may not be compatible with the display.

Key Features

Max. Data Rate - 17.82Gbps (5.94Gbps per data channel).
Max. Resolution - 4K@60Hz (4:4:4).
HDMI Compatible.
Compliance with HMDI Standards - HDR10, HDCP 2.2.
Line Powered Device - Power taken from the HDMI line, no power supply is needed.
Indicator - Power LED.
Controls - Four program DIP–switches control desired functions.

Specifications

INPUT	1 HDMI connector
OUTPUT	1 HDMI connector
MAX DATA RATE	17.82Gbps (5.94Gbps per data channel), 4K compatible
STANDARDS SUPPORTED	Supports HDR10, HDMI and HDCP 2.2
CONTROLS	4 DIP–switches
INDICATOR	Power LED
POWER REQUIREMENTS	Takes power from the HDMI line
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.2kg (0.4lbs) approx.
