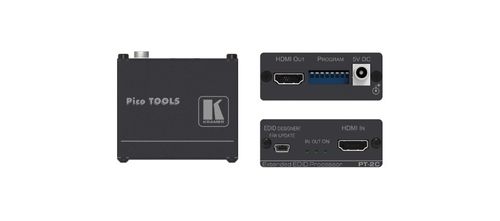

Kramer HDMI recolocker with advance EDID and debug options - PT-2C

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 Extended EDID Processor

PT?2C is an EDID processor for 4K HDMI signals. It allows you to pass or block HDCP, multi?channel audio or deep color signals that may or may not be compatible with the display.

Key Features

Max. Resolution - 4K@60Hz (4:2:0).
Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
HDMI Compliance.
Signal Reclocking.
Active Video Signal Source Detection.
Configurable Timeout - For when the input signal is lost.

Specifications

INPUT	1 HDMI connector
OUTPUT	1 HDMI connector
PORTS	1 mini USB
MAX DATA RATE	10.2Gbps (3.4Gbps per data channel)
CONTROLS	8 DIP�switches
STANDARDS	HDMI with Deep Color, x.v.Color™ and 3D HDCP-works with sources that support HDCP repeater mode
INDICATOR LEDS	HDMI In, HDMI Out, Power
POWER REQUIREMENTS	5V DC, 315mA
OPERATING TEMPERATURE	0� to +40�C (32� to 104�F)
STORAGE TEMPERATURE	�40� to +70�C (�40� to 158�F)
HUMIDITY	10% to 90%, RHL non�condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminium
RACK MOUNT	With optional adapter
FURNITURE MOUNT	With included rubber feet
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
COMPLIANCE STANDARDS	CE
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES	Power supply, bracket kit
OPTIONS	RK�4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.4kg (0.9lbs) approx.
