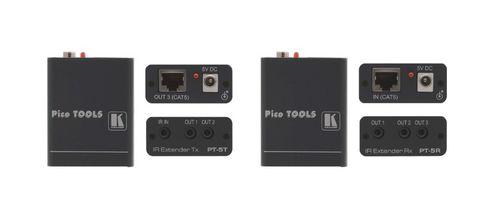

Kramer IR OVER CAT-5 TRANSCEIVER & REPEATER. - PT-5R/T

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

IR Extender & Repeater

The PT?5T and PT?5R are a twisted pair transmitter and receiver for infrared signals. The units control up to five devices via their own remote control IR transmitters at distances of up to 250m (820ft) over twisted pair cable.

Key Features

Multi–Unit IR Control - Controls 2 local and 3 remote devices (DVDs, amplifiers, air conditioners, etc.) over their IR ports.
Range - Up to 250m (820ft) via twisted pair.
Flexible Operation - Operates devices that are stacked away in closets, cabinets and other rooms.
PT–5T - Input: 1 IR receiver on a 3.5mm mini jack; outputs: 2 IR emitters on 3.5mm mini jacks; 1 twisted pair on an RJ–45 connector.
PT–5R - Input: 1 twisted pair on an RJ–45 connector; outputs: 3 IR emitters on 3.5mm mini jacks.
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
Sold as a Pair.

Specifications

INPUTS	1 IR receiver on a 3.5mm mini jack (PT–5T) 1 twisted pair on a RJ–45 connector (PT–5R)
OUTPUTS	2 IR emitters on 3.5mm mini jacks, 1 twisted pair on a RJ–45 connector (PT–5T) 3 IR emitters on 3.5mm mini jacks (PT–5R)
MAX. OPERATING DISTANCE	250m (820ft)
CARRIER FREQUENCY	36–40kHz
POWER CONSUMPTION	5V DC: 7mA (PT–5T), 6mA (PT–5R)
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, 1 IR receiver with 2m cable and 3.5mm mini jack, 5 IR emitters with 2m cables and 3.5mm mini jacks
