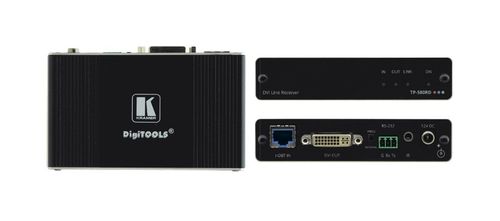

Kramer 4K60 4:2:0 DVI RS232/IR Long?Reach HDBT Rx - TP-580RD

4K60 4:2:0 DVI HDCP 2.2 Receiver with RS–232 & IR over Long–Reach HDBaseT

TP?580RD is a high?performance, long?reach HDBaseT receiver for 4K@60Hz (4:2:0) DVI/HDMI, RS?232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

• High Performance Standard Extender - Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580RD is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• Secured Operation - Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cables disconnection.
• HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant, via single–link DVI–I connection. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID signals are passed through from the source to the display.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Multi–channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• Bidirectional RS–232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Cost–effective Maintenance - Status LED indicators for DVI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.
• Easy Installation - Compact DigiTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the optional RK–3T rack adapter.
