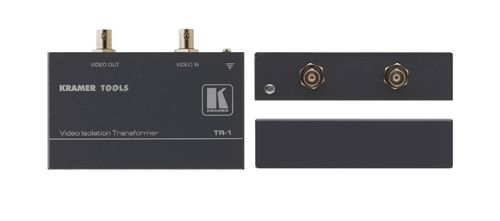

Kramer Video Isolation Transformer - TR-1

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Video Isolation Transformer

The TR-1 is a high-resolution isolation transformer for composite video signals. It completely isolates devices to eliminate video hum, ground loops, and DC offsets that can degrade picture quality.

Key Features

Bandwidth - 5.8MHz (–3dB).
Passive Device - No power required.

Specifications

INPUT	1 composite video, 1Vpp/75? on a BNC connector
OUTPUT	1 composite video, 1Vpp/75? on a BNC connector
INSERTION LOSS	0.8dB
MAX. OUTPUT LEVEL	4Vpp/75?
BANDWIDTH (-3DB)	5.8MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.05Deg
K-FACTOR	1.2%
S/N RATIO	73.4dB
TILT	0.1%
NON-LINEARITY	0.1%
COUPLING	Transformer
POWER CONSUMPTION	None, passive device
INCLUDED ACCESSORIES	Mounting brackets
OPTIONS	RK–3TR 19" rack adapter
PRODUCT DIMENSION	12.12cm x 7.23cm x 3.07cm (4.77" x 2.85" x 1.21" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT	0.4kg (1.0lbs) approx.
