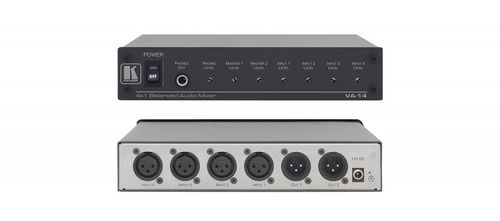

Kramer 4 Channel Balanced Audio Mixer - VA-14

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4–Channel Balanced Audio Mixer

The VA-14 is a high-performance 4-channel mixer for balanced mono audio signals on XLR connectors. The unit inputs four channels of any combination of balanced mic or line level audio signals and outputs two mixed balanced audio and one headphone signal.

Key Features

S/N Ratio - Mic in, phones out: 45.3dB; line in, phones out: 83.3dB; line in, line out: 84.3dB; mic in, line out: 64dB.
Level (Gain) Control - Individual for each input & master and headphone output.
Phantom Power - 48V DC on each input (individually selectable).
Desktop Size - Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 adapter.

Specifications

INPUTS	4 balanced mono audio, line or mic, on XLR (F) connectors
OUTPUTS	2 balanced mono audio on XLR (M) connectors 1 headphone output on a 6.5mm connector
MAX. OUTPUT LEVEL	Line: 20Vpp phones: 4.5Vpp mic: 300mVpp
BANDWIDTH (-3DB)	>40kHz
S/N RATIO	Mic in, phones out: 45.3dB line in, phones out: 83.3dB line in, line out: 84.3dB mic in, line out: 64dB
CONTROLS	Line in, line out: <–57dB to - 14.3dB mic in, line out <0dB to 60.5dB line in, phones out: <–47dB to - 18dB mic in, phones out: <0dB to 58.9dB in level and master/phones level, min to max position for both line in, mic out range: <–50dB to - 25dB mic in, mic out range:<0dB to 21.6dB underside slide switches: inputs: line/mic and +48V phantom ON/OFF Outputs: Line/Mic
COUPLING	IN: AC OUT: bal line/mic, DC phones, AC
AUDIO THD + NOISE	Line in, line out: 0.007% mic in, line out: 0.15% line in, phones out: 0.085% Mic in, phones out: 0.38%
AUDIO 2ND HARMONIC	Line in, line out: 0.001% mic in, line out: 0.005% line in, phones out: 0.009% mic in, phones out: 0.024%
POWER CONSUMPTION	12V DC, 250mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.7kg (1.5lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.1kg (2.3lbs) approx.
