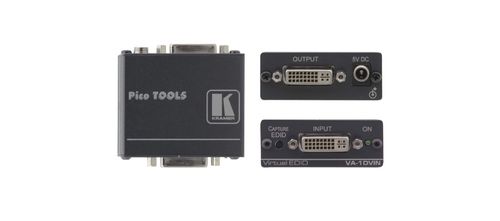

Kramer DVI EDID Emulator - VA-1DVIN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

DVI EDID Emulator

The VA?1DVIN is an EDID emulator for DVI?D signals. The unit can capture an EDID setting in non?volatile memory from the output allowing convenient and reliable connection to the source.

Key Features

Max. Data Rate - 3.3Gbps per graphic channel.
Input/Output - Passes analog signals on the DVI–I connector without processing.
Control - Capture button.

Specifications

INPUT	1 DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24–pin female connector DDC signal 5Vpp (TTL)
OUTPUT	1 DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24–pin female connector DDC signal 5Vpp (TTL)
BANDWIDTH	3.3Gbps per graphic channel
CONTROLS	Capture EDID button
POWER CONSUMPTION	5V DC, 20mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.4kg (0.9lbs) approx.
