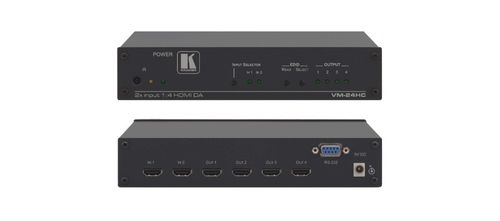

Kramer 2 input 1:4 HDMI Distribution Amplifier - VM-24HC

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2x1:4 Compact HDMI Switchable DA

The VM?24HC is a high?performance switcher and distribution amplifier for HDMI signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four HDMI outputs.

Key Features

Max. Data Rate - 6.75Gbps (2.25Gbps per graphics channel).
HDTV Compatible.
HDCP Compliant.
I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
EDID Handling - Acquires the EDID from one output, from all connected outputs (auto–mix) or uses a default EDID.
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HDMI Support - With Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
3D Pass–Through.
Flexible Control Options - Front panel, IR remote & RS–232.
Desktop Size - Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 adapter.

Specifications

INPUTS	2 HDMI connectors
OUTPUTS	4 HDMI connectors
MAX. DATA RATE	6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD	Supports HDMI and HDCP
CONTROLS	EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR
INDICATORS	POWER, IR, OUTPUT LEDs
POWER CONSUMPTION	5V DC, 1.1A
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, RC–IR3 infrared remote controller
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.9kg (1.9lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.4kg (3.0lbs) approx.
