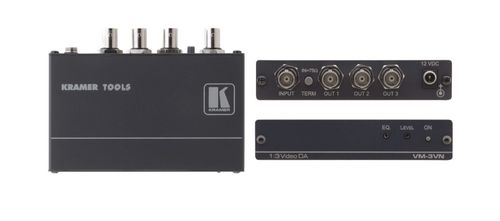

Kramer 1:3 Composite Video Distribution Amplifier - VM-3VN
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
1:3 Composite Video Distribution Amplifier
The VM-3VN is a distribution amplifier for composite video signals. The unit takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.
Key Features- High Bandwidth - 430MHz (–3dB).
- Selectable Input Signal Termination.
- Level (Gain) & EQ (Peaking) Controls.
Specifications
INPUT | 1 composite video on a BNC connector |
OUTPUTS | 3 composite video on BNC connectors |
MAX. OUTPUT LEVEL | 1.8Vpp |
BANDWIDTH (-3DB) | 430MHz |
DIFF GAIN | 0.12% |
DIFF PHASE | 0.03Deg |
K-FACTOR | <0.05% |
S/N RATIO | 74.3dB |
CONTROL | Level: - 1.6 to +6dB Equalization: 0 to +6dB |
COUPLING | AC |
POWER CONSUMPTION | 12V DC, 27mA |
INCLUDED ACCESSORIES | Power supply, mounting bracket |
OPTIONS | RK–3T 19" rack adapter |
PRODUCT DIMENSION | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
PRODUCT WEIGHT | 0.2kg (0.5lbs) approx. |
SHIPPING DIMENSION | 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H |
SHIPPING WEIGHT | 0.5kg (1.1lbs) approx. |
