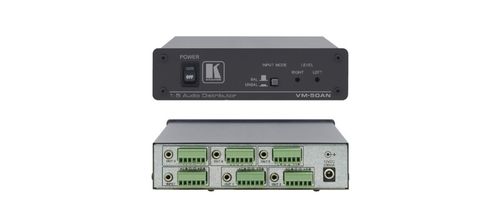

Kramer 1:5 Balanced & Unbalanced Stereo Audio Distribution Amplifie - VM-50AN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:5 Balanced & Unbalanced Stereo Audio Distribution Amplifier

The VM-50AN is a high-performance distribution amplifier for balanced and unbalanced stereo audio signals. It takes one balanced or unbalanced stereo input and distributes the signal simultaneously to ten stereo outputs (five balanced and five unbalanced).

Key Features

Balanced/Unbalanced Input Selection.
S/N Ratio - 84dB (unweighted).
Level (Gain) Controls.
Desktop Size - Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 adapter.

Specifications

INPUTS	1 balanced stereo audio, +4dBu/50k? on a detachable terminal block connector 1 unbalanced stereo audio, 1Vpp/50k? on a 3.5mm mini jack
OUTPUT	5 balanced stereo audio, +4dBu/50? on detachable terminal block connectors 5 unbalanced stereo audio, 1Vpp/470? on 3.5mm mini jacks
MAX. OUTPUT LEVEL	>24dBm
BANDWIDTH (-3DB)	40kHz fully loaded
S/N RATIO	84dB, unweighted
CONTROLS	Level (for right and left): 0.4 to 9.5dB
COUPLING	Input: AC Output: DC
AUDIO THD + NOISE	0.002% @1kHz, balanced output
AUDIO 2ND HARMONIC	0.022% @1kHz, balanced output
POWER CONSUMPTION	12V DC, 200mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	16.30cm x 12.00cm x 4.40cm (6.42" x 4.72" x 1.73" ) W, D, H
PRODUCT WEIGHT	0.6kg (1.4lbs) approx.
SHIPPING WEIGHT	1.1kg (2.4lbs) approx.
SHIPPING DIMENSION	31.90cm x 16.50cm x 6.70cm (12.56" x 6.50" x 2.64" ) W, D, H
