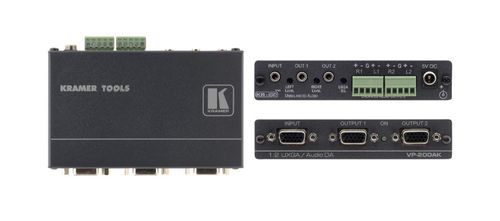

Kramer 1:2 Computer Graphics Video & Stereo Audio Distribution Ampl - VP-200AK
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
1:2 Computer Graphics Video & Stereo Audio Distribution Amplifier
The VP-200AK is a high-performance distribution amplifier for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio. It takes a computer graphics video and stereo audio input and outputs two computer graphics video, two balanced, and two unbalanced stereo audio signals.
Key Features- High Bandwidth - 510MHz (–3dB).
- HDTV Compatible.
- Audio Outputs - Simultaneous balanced and unbalanced stereo.
- EQ (Peaking Control) Audio Level (Gain) Controls.
- Kr–isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled via internal switches.
- ID Bit Control.
Specifications
INPUTS | 1 UXGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack |
OUTPUTS | 2 UXGA on 15–pin HD (F) connectors, 2 unbalanced stereo audio on 3.5mm mini jacks, 2 balanced stereo audio on detachable 5–pin terminal blocks |
MAX. OUTPUT LEVEL | Video: 2.0Vpp Audio: 7.2Vpp |
BANDWIDTH (-3DB) | Video: 510MHz Audio: >100kHz |
DIFF. GAIN | 0.55% |
DIFF. PHASE | 0.10Deg |
K-FACTOR | <0.05% |
S/N RATIO | Video: 72.5dB @5MHz Audio: 82dB (balanced) 88dB (unbalanced) |
CONTROLS | EQ: 0dB to 4.7dB @50MHz |
COUPLING | Video: DC Audio: AC at the output DC at the input |
AUDIO THD + NOISE | 0.005% @1kHz (unbalanced and balanced) |
AUDIO 2ND HARMONIC | 0.003% (unbalanced) 0.001% (balanced) |
POWER CONSUMPTION | 5V DC, 120mA |
INCLUDED ACCESSORIES | Power supply, 3ft 15–pin HD cable, mounting bracket |
OPTIONS | RK–3T 19" rack adapter |
PRODUCT DIMENSION | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
PRODUCT WEIGHT | 0.2kg (0.4lbs) approx. |
SHIPPING DIMENSION | 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H |
SHIPPING WEIGHT | 0.7kg (1.6lbs) approx. |
