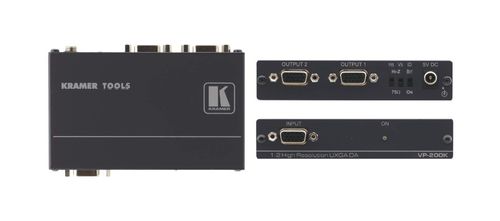

Kramer 1:2 High Resolution UXGA DA - VP-200K

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:2 Computer Graphics Video Distribution Amplifier

The VP?200K is a distribution amplifier for computer graphics signals up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

Key Features

High Bandwidth - 400MHz (–3dB).
HDTV Compatible.
ID Bit Control.
Kr–isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
EDID PassThru - Passes EDID signal from display to source via output 1.
Selectable Sync Input Impedance - 75? (video), 510? (Graphics/TTL).
DC Coupling.
3ft 15–pin HD Cable Included.

Specifications

INPUT	1 UXGA on an 15–pin HD connector
OUTPUTS	2 UXGA on 15–pin HD connectors
MAX. OUTPUT LEVEL	2.2Vpp
BANDWIDTH (-3DB)	400MHz
DIFF. GAIN	0.03%
DIFF. PHASE	0.03Deg
K-FACTOR	<0.05%
S/N RATIO	72dB @5MHz
CONTROLS	ID BIT switch analog/TTL switches for setting the sync
COUPLING	DC
POWER CONSUMPTION	5V DC, 130mA
INCLUDED ACCESSORIES	Power supply (5V/2.6A), mounting bracket
OPTIONS	RK–3T 19" rack adapters
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.7kg (1.5lbs) approx.
