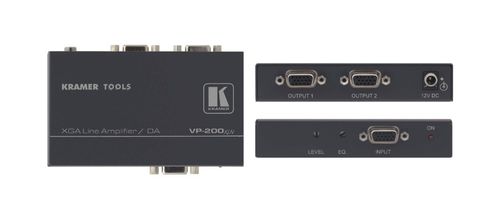

Kramer 1:2 Computer Graphics Video Line & Distribution Amplifier - VP-200XLN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:2 Computer Graphics Video Line & Distribution Amplifier

The VP-200xln is a high-performance line and distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.

Key Features

High Bandwidth - 400MHz (–3dB).
HDTV Compatible.
Level (Gain) and EQ (Peaking) Controls.
ID Bit Control.
AC/DC Coupling Selection - Individually for R, G, & B signals.

Specifications

INPUT	1 UXGA on a 15–pin HD (F) connector
OUTPUTS	2 UXGA on 15–pin HD (F) connectors
MAX. OUTPUT LEVEL	2Vpp
BANDWIDTH (-3DB)	400MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.03Deg
K-FACTOR	<0.05%
S/N RATIO	71dB
CONTROLS	Level: - 1.5dB to +6.1dB, EQ.: 0 to +7.3dB @50MHz
COUPLING	AC/DC
POWER CONSUMPTION	12V DC, 95mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
