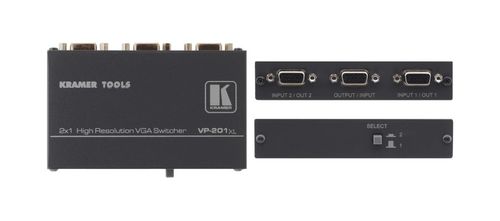

Kramer 2x1 Computer Graphics Video Mechanical Switcher - VP-201XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2x1 Computer Graphics Video Mechanical Switcher

The VP-201xl is a high-performance switcher for computer graphics video signals with resolutions up to and exceeding UXGA. It switches either of two signals to a single output.

Key Features

High Bandwidth - 1300MHz (–3dB).
HDTV Compatible.
Mechanical (Passive) Switching - No power required.
Bidirectional Operation - Can be used as a 2x1 switcher (2 inputs, 1 output) or a 1x2 switcher (1 input, 2 outputs).

Specifications

INPUTS	2 analog red, green, blue signals, 0.7Vpp/75?, H & V sync, TTL level, on 15–pin HD (F) connectors
OUTPUTS	1 analog red, green, blue signals, 0.7Vpp/75?, H & V sync, TTL level, on 15–pin HD (F) connector
VIDEO BANDWIDTH (-3DB)	1300MHz
SWITCHING METHOD	Mechanical
INCLUDED ACCESSORIES	Mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.3lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.4kg (0.8lbs) approx.
