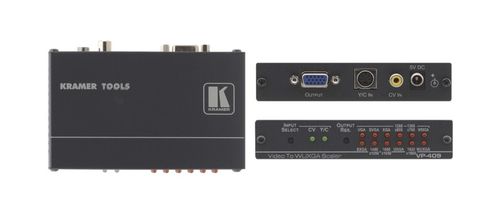

Kramer Video to Computer Graphics ProScale Digital Scaler - VP-409

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Video to Computer Graphics ProScale™ Digital Scaler (up to WUXGA)

The VP-409 is a high-quality video scaler for composite and s-Video (Y/C) video signals. The unit scales the video to a selectable computer graphics video output signal on a 15-pin HD connector.

Key Features

CV and Y/C Inputs.
Multi–Standard - PAL (B/D/G/H/I) & NTSC (3.58/4.43).
Output Resolutions - VGA, SVGA, XGA, 1280x800, 1366x768, WSXGA, SXGA, 1400x1050, 1680x1050, UXGA, 1920x1080, and WUXGA.
Built–in De–interlacer and Comb Filter.
Non–Volatile Memory - Retains last settings.
Controls - Front panel buttons for choosing input signal and output resolution.
External DC Power Source.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	1 composite video, 1Vpp/75? on an RCA connector 1 Y/C (s–Video), 1Vpp/75? (Y), 0.3Vpp/75? (C) on a 4–pin connector
OUTPUT	1 VGA (VGA through WUXGA) on a 15–pin HD computer graphics video connector
OUTPUT RESOLUTIONS	VGA, SVGA, XGA, 1280x800, 1366x768, WSXGA, SXGA, 1400x1050, 1680x1050, UXGA, 1920x1080, and WUXGA
OUTPUT REFRESH RATE	60Hz
CONTROLS	Pushbuttons and LEDs for selection of input source and output resolution
POWER CONSUMPTION	5V DC, 550mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.4kg (1.0lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.9kg (2.0lbs) approx.
