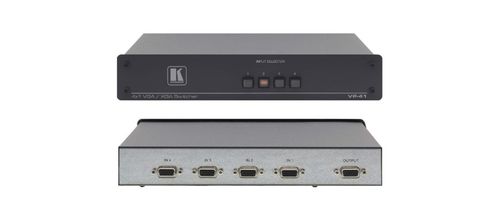

Kramer 4x1 Computer Graphics Video Mechanical Switcher - VP-41

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4x1 Computer Graphics Video Mechanical Switcher

The VP?41 is a high?performance switcher for computer graphics video signals with resolutions up to and exceeding UXGA. It switches any one of four signals to a single output.

Key Features

High Bandwidth - 750MHz (–3dB).
HDTV Compatible.
Mechanical (Passive) Switching - No power required.

Specifications

INPUTS	4 VGA/UXGA on 15–pin HD (F) connectors
OUTPUT	1 VGA/UXGA on a 15–pin HD (F) connector
VIDEO BANDWIDTH (-3DB)	750MHz
CONTROL	Four front panel buttons
CROSSTALK	–58dB at adjacent channels @10MHz
COUPLING	DC
OPTIONS	RK–81X 19" rack adapter
PRODUCT DIMENSION	40.50cm x 29.70cm x 9.00cm (15.94" x 11.69" x 3.54" ) W, D, H
PRODUCT WEIGHT	0.9kg (1.9lbs) approx.
SHIPPING DIMENSION	25.50cm x 10.20cm x 4.40cm (10.04" x 4.02" x 1.73" ) W, D, H
SHIPPING WEIGHT	1.4kg (3.0lbs) approx.
