Home / Kramer AV / Kramer Computer Graphics Video & HDTV to HDMI ProScale™ Digital Sca - VP-425

Kramer Computer Graphics Video & HDTV to HDMI ProScale™ Digital Sca - VP-425

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

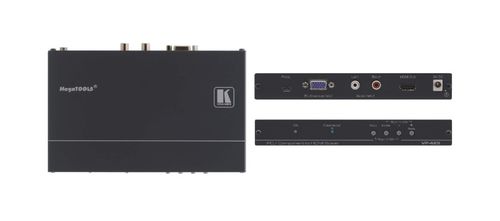

Computer Graphics Video & HDTV to HDMI ProScale™ Digital Scaler

The VP-425 is a high-performance digital scaler for computer graphics video and component HDTV signals. It up- or down-scales the input and embeds the stereo audio into the non-HDCP encrypted HDMI output.

Key Features

HDTV Compatible.
Max. Resolution - WUXGA & 1080p.
Built–in ProcAmp - Color, sharpness, brightness, contrast, etc.
Controls - Front panel with On–Screen Display (OSD).
USB Port - For firmware upgrade.
Compact MegaTOOLS™ - 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–T2B universal rack adapter.

Specifications

INPUTS	1 VGA on a 15–pin HD connector, RGBHV/YPbPr (selectable) 1 unbalanced stereo audio on RCA connectors
OUTPUT	1 DVI/HDMI on an HDMI connector
INPUT RESOLUTIONS	PC: VGA, SVGA, XGA, 1280x800, UXGA, SXGA, WXGA, SXGA+, WXGA+, WSXGA, WUXGA HDTV: 480p, 576p, 720p @50/60Hz, 1080p @50/60Hz, 1080i @50/60Hz
PROCESSING DELAY	30ms approx
CONTROLS	Front panel buttons, ON and component output LEDs
POWER CONSUMPTION	5V DC, 400mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–T2B 19" rack adapter
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT	0.4kg (0.9lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT	1.0kg (2.2lbs) approx.
