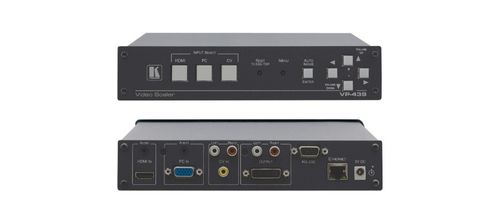

Kramer HDMI, PC and CV to HDMI ProScale™ Digital Scaler - VP-439

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

HDMI, PC and CV to HDMI Classroom Switcher / Scaler

The VP?439 is a high?performance digital scaler for computer graphics video, composite and HDMI signals, including audio. It up/down scales the selected HDMI, CV or computer graphics video/YPbPr input and outputs it to HDMI on a DVI?I connector.

Key Features

Maximum Resolution - Up to 1080p/WUXGA.
HDTV Compatible.
HDCP Compliant.
Auto Switching - Searches for a valid signal when the input signal is lost.
Automatic Input Audio Detection and Selection - Selects embedded audio for HDMI inputs, or analog audio when DVI is detected.
Auto–Power Down - If no input signal is detected for 2 to 3 minutes, output is shut down.
Analog Audio Inputs - For CV, PC and HDMI.
Lip Sync Delay
On–Screen Display (OSD) - For easy setup and adjustment, accessible via the front–panel buttons.
Flexible Control Options - Front panel buttons, OSD (on–screen display), Web page, Ethernet, RS–232.
Built–in ProcAmp - For convenient adjustment of video parameters, such as brightness, contrast, color, sharpness and hue.
Non–Volatile Memory - Saves final settings.

Specifications

INPUTS	1 HDMI with unbalanced stereo on a 3.5mm mini jack, 1 PC/HD (RGBHV/YPbPr) on a 15–pin HD connector with unbalanced stereo on a 3.5mm mini jack, 1 composite video on an RCA connector with unbalanced stereo on 2 RCA connectors
OUTPUTS	1 HDMI on a DVI–I connector with unbalanced stereo on 2 RCA connectors
PORTS	1 Ethernet on an RJ–45 connector, 1 RS–232 on a 9–pin D–sub connector
OUTPUT COLORSPACE	RGB/YPbPr
OUTPUT RESOLUTIONS	1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, WXGA+, SXGA+, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 1600x900
OUTPUT REFRESH RATE	60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
PROCESSING DELAY	30ms approx
CONTROLS	Front panel buttons, menu–driven OSD control, Web page
POWER CONSUMPTION	5V DC, 1.1A
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONAL ACCESSORIES	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	1.0kg (2.2lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.6kg (3.5lbs) approx.
