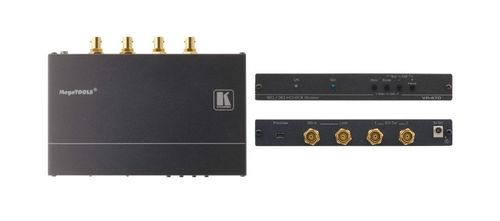

Kramer 3G-HD-SDI-SDI ProScale(TM) Digital Scaler. - VP-470

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

3G HD–SDI ProScale™ Digital Scaler

The VP-470 is a high-performance digital scaler for 3G HD-SDI signals. It up- or down-scales the incoming SDI signal to resolutions up to 1080p and routes it to two identical SDI outputs.

Key Features

Max. Data Rate - 3Gbps.
HDTV Compatible.
Multi–Standard Operation - SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
Looping Input - Reclocked and equalized.
Selectable Output Size & Aspect Ratio - Full, panscan, letterbox, underscan and overscan settings.
Built–In ProcAmp Features - Color hue, sharpness, contrast and brightness.
Freeze Button.
Non–Volatile Memory - Saves final settings.
USB Port - For firmware upgrade.
Controls - Front panel buttons with OSD (on screen display).
Compact MegaTOOLS™ - 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–T2B universal rack adapter.

Specifications

INPUT	1 SD/HD/3G HD–SDI with reclocked and equalized loop on a BNC connector
OUTPUTS	2 SD/HD/3G HD–SDI on BNC connectors
INPUT RESOLUTIONS	SDTV: 480i @59.94Hz, 576i @50Hz HDTV: 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz, 1080sF @23.98/24/25/29.97/30Hz 3G: 1080p @50/59.94/60 1080sF @23.98/24 inputs don't support 480i/576i output for 1080sF25/29.97/30 inputs, the OSD info. shows 1080i50/59.94/60
OUTPUT RESOLUTIONS	SDTV: 480i @59Hz, 576i @50Hz HDTV: 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz 3G: 1080p @50/59.94/60Hz
OUTPUT SIZE	Full, panscan, letterbox, underscan, overscan
PROCESSING DELAY	30ms
CONTROLS	Menu, OSD, Reset to 1080p or 720p and Freeze front panel buttons
POWER CONSUMPTION	5V DC, 440mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–T2B 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.4kg (1.0lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	0.9kg (2.0lbs) approx.
