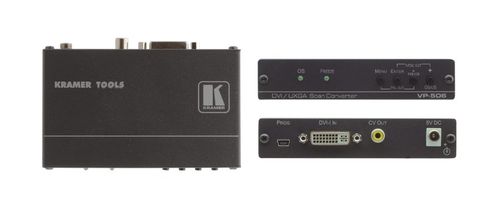

Kramer DVI / UXGA Scan Converter - VP-506

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

DVI & Computer Graphics Video Scan Converter

The VP?506 is a high?quality scan converter for down?scaling DVI, computer graphics (VGA) and component video (YPbPr) to PAL or NTSC video. It supports VGA up to UXGA, as well as component resolutions up to 1080p.

Key Features

Max. Resolution - UXGA & 1080p.

HDTV Compatible Input.

Selectable Video Standards - PAL or NTSC.

Memory Locations - Saves and recalls up to four setups, including picture, input, output, zoom and advanced feature setups.

Built–In ProcAmp Features - Color, sharpness, contrast and brightness.

Control - Front panel buttons and OSD (on screen display).

Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 DVI–I (DVI–D, VGA, YPbPr) on a 24–pin Molex connector
OUTPUT	1 composite video, 1Vpp/75? on an RCA connector
INPUT RESOLUTIONS	Up to WUXGA/1080p
CONTROLS	Front panel and OSD: ProcAmp video controls, freeze, underscan/overscan, 8 color bars
POWER CONSUMPTION	5V DC, 540mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.4lbs) approx.
