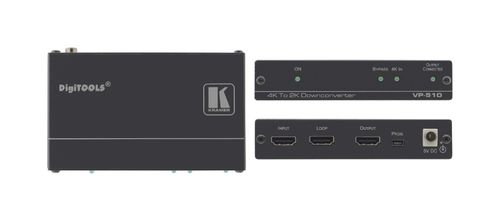

Kramer HDMI 4K to 2K scaler / downconverter with looping input - VP-510

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K to 2K Down–Converter

VP?510 is a down?converter for 4K UHD HDMI signals. The unit takes a 4K resolution input, provides a loop output and down?converts it to 2K resolution. It allows the use of legacy equipment with 4K signals (23.98Hz to 30Hz).

Key Features

HDMI Signal Downscaling - From 4K UHD to 2K/1080p.
Resolution Support - 4K@24Hz 4096×2160p and 4K@24/25/30Hz 3840×2160p.
HDMI Signal Bypass - For non–4K resolutions.
HDMI Looping Input.
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
HDMI Support - 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD® and 7.1 PCM.

Specifications

INPUTS	1 HDMI (looping) on an HDMI connector
OUTPUTS	1 HDMI and 1 loop on HDMI connectors
PORT	1 mini–USB for firmware upgrading
MAX. DATA RATE	10.2Gbps (3.4Gbps per graphic channel)
INDICATOR LEDS	ON, BYPASS, 4K IN, OUTPUT CONNECTED
SUPPORTED STANDARDS	Up to HDMI 1.4 and HDCP 1.4
SUPPORTED 4K RESOLUTIONS	3840x2160 @23.98/24Hz (HDMI_VIC 3), 3840x2160 @25Hz (HDMI_VIC 2), 3840x2160 @29.97/30Hz (HDMI_VIC 1), 4096x2160 @23.98/24Hz (HDMI_VIC 4)
POWER CONSUMPTION	5V DC, 550mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
