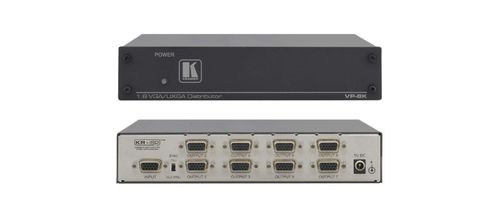

Kramer 1:8 Computer Graphics Video Distribution Amplifier - VP-8K

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:8 Computer Graphics Video Distribution Amplifier

The VP-8K is a high-performance distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It takes one input, provides correct buffering and isolation, and distributes the signal to eight identical outputs.

Key Features

High Bandwidth - 370MHz (–3dB).
HDTV Compatible.
Selectable Sync Input Impedance - 75? (video), 510? (Graphics/TTL).
Kr–isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
Desktop Size - Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 adapter.

Specifications

INPUT	1 UXGA on a 15–pin HD (F) connector
OUTPUTS	8 UXGA on 15–pin HD (F) connectors
MAX. OUTPUT LEVEL	2.2Vpp
BANDWIDTH (–3DB)	370MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.05Deg
K FACTOR	<0.05%
S/N RATIO	73dB
CONTROLS	TTL/ANALOG switch (on the rear panel)
COUPLING	DC
POWER CONSUMPTION	5V DC, 390mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.9kg (2.0lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.3kg (2.9lbs) approx
