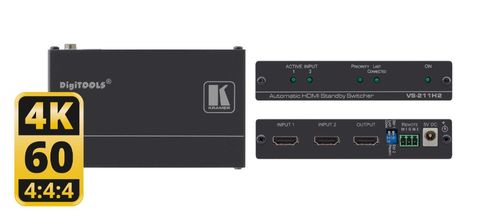

Kramer 2:1 UHD low-cost auto switcher - VS-211H2

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2x1 4K HDR HDCP 2.2 HDMI Auto Switcher

VS?211H2 is a high?performance automatic switcher for 4K HDR, HDCP 2.2, HDMI 2.0 video signals. Offering priority and last?connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Key Features

Max. Data Rate - 17.82Gbps (5.94Gbps per data channel).
Max. Resolution - 4K@60Hz (4:4:4).
Kramer Equalization and re–Klocking Technology.
HDR Support.
HDTV Compatible.
HDMI 2.0 & HDCP 2.2 Compliant.
3D Pass–Though.

Specifications

INPUTS	2 HDMI connectors
OUTPUTS	1 HDMI connector
MAX. DATA RATE	17.82GBPS (5.94Gbps per graphic channel)
MAX. RESOLUTION	4K@60Hz (4:4:4)
STANDARDS COMPLIANCE	HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 2.0
CONTROLS	Status/priority DIP–switches, contact closure remote control
REGULATORY CERTIFICATION	EMC EN 55032 IEC 60950�1(ed.2) IEC 60950�1(ed.2)am1 IEC 60950�1(ed.2)am2
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	�40° to +70°C (�40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
POWER CONSUMPTION	5V DC, 400mA
INCLUDED ACCESSORIES	Power supply 5.2V DC/4A desktop
OPTIONS	RK�3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.4lbs) approx.
