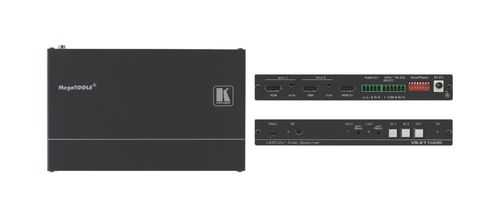

Kramer 2:1 UHD HDMI auto switcher - VS-211UHD

2x1 4K60 4:2:0 HDMI Auto Switcher with Audio

The VS?211UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. The VS?211UHD automatically switches one of two HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher?priority video signal is detected. It also supports Kramer's Step?in over HDMI technology.

• Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel) with 4K UHD support.
• Max. Resolution - 4K@60Hz (4:2:0).
• Step–In Over HDMI Technology.
• HDTV Compatible.
• Active Switching - Selectable manual or fast auto switching according to last connected or preset priority.
• Compliance - HDMI 1.4, HDCP and DVI 1.0.
• HDMI 1.4 Support - Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
• HDMI ARC De–embedding - From output to balanced stereo audio line, uncompressed.
• Automatic Video Input Detection & Selection.
• Auto Power Off - When no HDMI input for 10 seconds (selectable).
• Selectable HDCP Switching.
• EDID Configuration Options.
• Default EDID.
• Contact Closure - For remote manual switching override.
• Audio Embedding/De–embedding.
• Analog Audio Input Per Port.
• Lock Button
• Firmware Upgrade - Over RS–232, mini–USB.
• Software Support - Protocol 3000, EDID Designer, K–Upload via RS–232.
• Varied Control Options - Front panel buttons, contact closure, IR, RS–232 Protocol 3000.
