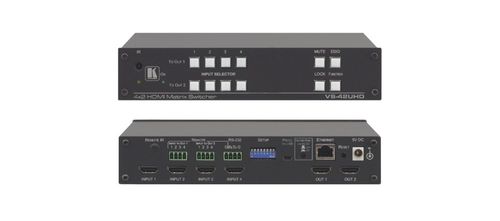

Kramer 4x2 UHD HDMI matrix switcher - VS-42UHD

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

VS?42UHD is a high?quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.

Key Features

Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
HDCP Compliant
True Video Clock Detection.
Automatic Switching Modes - Last connected and priority switching.
HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Programmable Step–in Functionality - When used with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
Non–Volatile EDID Storage.
Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
Static or Dynamic DHCP IP Addressing.
Embedded Web Pages - Provide remote configuration and operation.
Lock Button - Prevents tampering with the front panel buttons.
Kramer Protocol 3000.
Versatile Control Options - RS–232, Ethernet, infrared remote control, optional remote IR receiver.

Specifications

INPUTS	4 HDMI connectors
OUTPUTS	2 HDMI connectors
PORTS	1 Ethernet on an RJ–45 connector 1 IR on a 3.5mm mini jack 12 remote selection contact–closure switches on 13 terminal block pins 1 serial port on a 3–pin terminal block 1 program port on a mini USB
BANDWIDTH	Up to 8.91Gbps data rate (2.97Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD	HDMI and HDCP
RESOLUTION	Up to UXGA 4K x 2K
SUPPORTED BAUD RATES	9600, 115200bps
SUPPORTED WEB BROWSERS	The following operating systems and Web browsers are supported: Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9 Windows XP: Google Chrome v25, FireFox v15 Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6
POWER CONSUMPTION	5V DC, 880mA 100–240V AC, 65VA max
CONTROLS	Front panel buttons, infrared remote control transmitter, RS–232, Ethernet, remote input selection switches
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, RC–IR3 remote control
OPTIONS	External remote IR receiver cable, RK–1
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.9kg (2.1lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.8kg (3.9lbs) approx.
