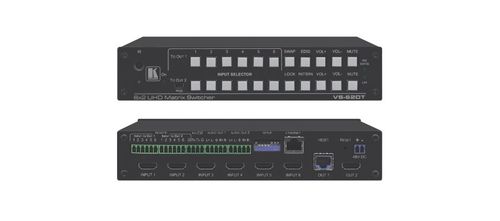

Kramer 6x2 UHD HDMI Matrix Switcher with HDMI and HDBT outputs - VS-62DT

6x2 4K60 4:2:0 HDMI/HDBaseT Long–Reach PoE Matrix Switcher

VS?62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long?reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

• Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
• Max. Resolution - 4K@60Hz (4:2:0).
• HDCP 1.4 Support.
• HDMI 1.4 Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
• Routing - Six HDMI inputs can be routed to an HDMI and HDBaseT output.
• Power–over–Ethernet - Supply of PoE to compatible receivers.
• EDID Capture - Copies and stores the EDID from a display device per input.
• Programmable Step–in Functionality - When used together with compatible step–in devices, such as the SID–X3N and DIP–31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• True Video Clock Detection.
• Advanced Auto AV Switching - Last connected and priority switching modes.
• Non–Volatile EDID Storage.
• Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Lock Button - Prevents tampering with front panel buttons.
• Internal Pattern Generator.
• Kramer Protocol 3000 Support.
• Static or Dynamic DHCP IP Addressing.
• Flexible Control Options - Front panel buttons, IR remote (included), RS–232, Ethernet, contact closure, embedded Web server and step–in.
• Mini–USB Port - For upgrading firmware.
