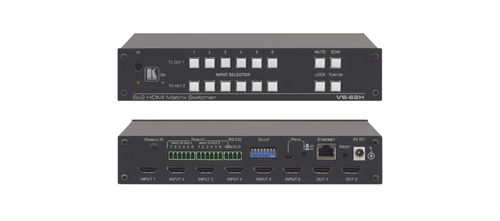

Kramer 6x2 HDMI switcher - VS-62H

6x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

VS?62H is a high?quality, 6x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.

• Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
• Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
• HDCP Compliant.
• HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
• EDID Capture - Copies and stores the EDID from a display device.
• Programmable Step–In Functionality - When used in conjunction with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• True Video Clock Detection.
• Auto Switching Option - For either or both outputs, last–connected or priority switching.
• Non–Volatile EDID Storage.
• Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Lock Button - Prevents unwanted tampering with the front panel.
• Internal Pattern Generator.
• Kramer Protocol 3000 Support.
• Embedded Web Pages - Provide remote configuration and operation.
• Static or Dynamic DHCP IP Addressing.
• Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS�232, Ethernet, contact closure, embedded Web server.
• USB Port - For upgrading firmware.
