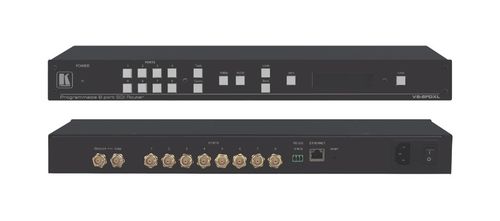

Kramer 8-bidirectional ports 3G SDI matrix switcher - VS-8FDXL

Revolutionary 8–Port SDI Matrix Switcher with Interchangeable Inputs and Outputs

VS?8FDxl is an 8?port matrix switcher for SDI signals for up to 3G HD?SDI. Each SDI port can be defined as either an input or output.

• Max. Data Rate - 3Gbps.
• HDTV Compatible.
• Multi–Standard Operation - SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
• Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Supports ANC Data - Embedded audio, teletext, time code, etc.
• Cable Equalization - Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
• Clean Switching - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
• Versatile Genlocking - Using an analog signal.
• Memory Locations - Stores 8 multiple switches as presets to be recalled and executed when needed.
