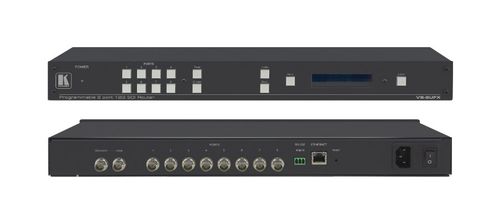

Kramer SDI matrix switcher with interchangeable inputs and outputs - VS-8UFX

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

VS?8UFX is an 8?port matrix switcher for SDI signals for up to 12G HD?SDI. Each SDI port can be defined as either an input or output.

Key Features

Max. Data Rate - 12Gbps.
HDTV Compatible.
Multi–Standard Operation - SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Supports ANC Data - Embedded audio, teletext, time code, etc.
Cable Equalization - Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
Clean Switching - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
Versatile Genlocking - Using an analog signal.
Memory Locations - Stores 8 multiple switches as presets to be recalled and executed when needed.

PORTS	8 12G HD-SDI/HD-SDI/SDI video: On BNC connectors (by default, 1 to 4 are set as inputs and 5 to 8 are set as outputs) 1 Genlock: 75? on a BNC connector
STANDARDS COMPLIANCE	12G-SDI: SMPTE ST–2082–1 3G HD-SDI: SMPTE 424M HD-SDI: SMPTE 292M SDI: SMPTE 259M/344M
VIDEO	Max. Resolution: 4K@60Hz (4:2:2) Max. Data Rate: 12Gbps
USER INTERFACE	Controls: Front Panel Buttons, RS–232, Ethernet, Web pages Indicators: LCD display, Power LED
EXTENSION LINE	SD: Up to 300m 1.5GHz HD: Up to 200m 3GHz HD: Up to 100m 6GHz HD: Up to 100m 12GHz UHD: Up to 80m
COUPLING	AC
POWER	Source: 100–240V AC Consumption : 33VA max
ENCLOSURE	Size: 19", 1U Type: Aluminum Cooling: Fan ventilation
ENVIRONMENTAL CONDITIONS	Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)	Safety: CE Environmental: RoHs, WEEE
ACCESSORIES	Included: Power cord, rack ears
PRODUCT DIMENSION	43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
PRODUCT WEIGHT	1.7kg (3.7lbs) approx.
SHIPPING DIMENSION	55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
SHIPPING WEIGHT	2.7kg (6.0lbs) approx.
