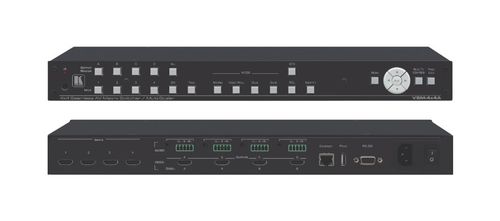

Kramer 4x4 Seamless Matrix Switcher/Multi?Scaler with Analog Audio - VSM-4X4A

4x4 Seamless AV Matrix Switcher/Multi–Scaler

VSM?4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi?viewers. The unit enables switching between inputs with a clean video cut (frame?to?frame switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio and includes per?port HDCP and EDID settings.

• PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high–quality scaling technology.
• HDTV Compatible.
• HDCP Compliant.
• 4 HDMI Inputs & 4 Scaled HDMI Outputs.
• Audio - 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
• Selectable Operation Modes - 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display.
• Bezel Correction Options - In video wall mode.
• Matrix Switching Modes - Seamless switching mode (zero–time video cuts), or fade–through–black mode (enabling independent output resolutions).
• Constant Output Sync - For all modes of operation.
• HDMI Support - Deep Color, Dolby Digital Plus, DTS, DTS–HD®, LPCM 2CH/6CH/8CH, AC3.
• Per Port HDCP and EDID Settings
• Input Resolution Range - VGA to WUXGA and 480i to 1080p.
• Output Resolution Range - 480p to 1080p.
• Multiple Aspect Ratio Selections - Full, 4:3, 16:9 and best fit.
• Built–in ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
• Front Panel Control - Operation mode, TAKE button and menu buttons.
• 4 Preset Memory Locations - For each operation mode for quick access to common IN–OUT configurations.
• Front Panel Lockout.
• Non–Volatile Memory - Saves final settings.
• Additional Internal Memory - Supports larger firmware code.
• Firmware Upgrade - Via Ethernet or the program mini USB connector.
• Varied Control Options - Front panel buttons, RS–232 serial commands transmitted by a touch screen system, PC, or other serial controller; infrared remote control transmitter with OSD (on–screen display), Ethernet with built–in web pages.
