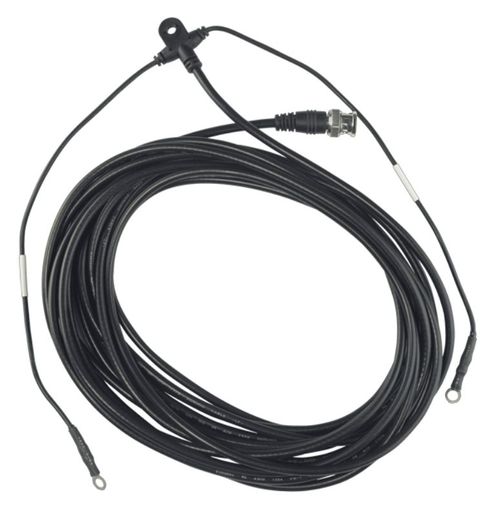

Listen Technologies Coaxial Dipole Remote Antenna (216 MHz) - LA-117

Listen Technologies Coaxial Dipole Remote Antenna (216 MHz) - LA-117

Part Number: LA-117
Our Price: $191.00
Availability: Usually ships the same business day
-
+

Description

Coaxial Dipole Remote Antenna (216 MHz)

Made for permanent installations, the LA-117 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 216 MHz transmitters and receivers, the LA-117 is 68.6cm (27 in.) in length and flexible to fit any space or venue where it is needed.

Includes one (1) LA-117 Coaxial Dipole Remote Antenna (216 Mhz)

Key Features
  • Flexible design for multiple installation options including wall mounting, drop ceiling placement, and more
  • Range up to 914 m / 3,000 ft.
  • Compatible with Listen Technologies’ 216 MHz transmitters and receivers
  • Easy to install

Specifications

Frequency Range216.0125 - 216.9875 MHz
Typical RangeRange up to 914 m / 3,000 ft.
Length27.00 in. (68.6 cm)
MaterialPolyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
Shipping Weight1.0 lb (0.5 kg)
Diameter0.19 in. (4.88 mm)
Cable Length25 ft. (7.62 m)
Cable TypeRG-58 50 Ohm Coaxial Cable
Weight13.40 oz. (0.38 kg)
