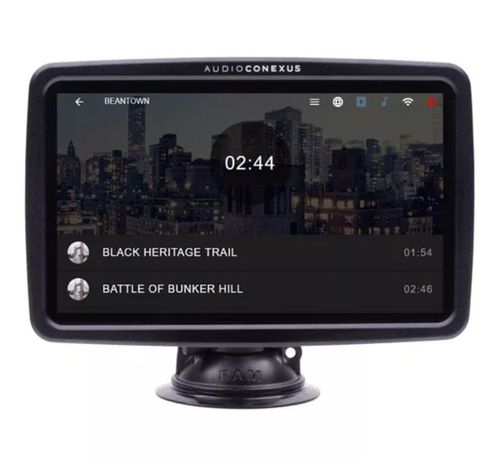

Listen Technologies Navilution Display Control Panel - LN-075-DCP

Description

Navilution Display Control Panel

The Display Control Panel (“DCP”) is an external display that improves safety and reduces drivers and captains’ distractions. Displaying the elapsed time of audio tour commentary, drivers and captains manage route timing without slowing down or speeding up. The easy to read touch screen shows the audio commentary playlist, with play, pause, and stop features for guides. Users access safety and emergency announcements, off-route audio commentary, and quickly set the language to play over the public address system’s speakers using one-finger touches.

Includes

One (1) Navilution Display Control Panel (DCP)
One (1) Navilution DCP Ram Mount – Short Arm
One (1) Navilution DCP V2.0 POE Power
One (1) 10ft/3m Green CAT5e Cable

Specifications

Dimensions (H x W x D)	132.60 mm (5.22 in.) x 212.41 mm (8.36 in.) x 58.35 mm (2.30 in.)
Unit Weight	0.363 kg (3.0 lbs.)
Shipping Weight	1.36 kg (3.0 lbs.)
Mounting Hardware	RAM (RAM-B-138U) double ball drill-down mount, aluminum.
Touch Screen	7" (177.80mm), 800 x 480, TFT, 10 finger capacitive touch display.
Power Switch	Switch, push button SPST, DCP power.
Ethernet Port Green LED	Solid Green, physical link established. Flashing Green, data transfer.
Ethernet Jack	RJ-45, Dedicated port for connection to EVO or NEXT, Includes DCP power when used in conjunction with POE power cable LNA-048-POE.
Micro USB	Micro USB, Type B. DCP power alternative when used with a 5V USB power adapter.
USB	For internal use only
Temperature - Operating	0 C to +40 C (32 F to +104 F)
Temperature - Storage	-20 C to +50 C ( -4 F to +122 F)
Relative Humidity	0 - 95%, Non condensing.
