Listen Technologies Navilution NEXT Server - LN-200N

Description

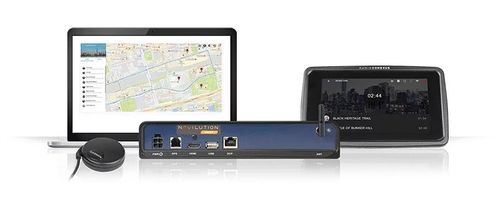

Navilution NEXT Server

The Navilution NEXT Server is a replacement or back-up server for Navilution NEXT and Listen EVERYWHERE systems. Order this if you need to replace a server or you want a spare or back-up server in case of failure. It does not include the Display Control Panel or GPS Receiver.

Includes

One (1) LN-100N Navilution NEXT Server
One (1) LNA-041-WFA Listen Navilution WiFi Antenna SMA-Male
One (1) LNA-043-MB Navilution Server Mounting Bracket
One (1) LNA-052-USB Navilution USB xxGB Flash Drive

Specifications

Physical
Dimensions (H x W x D)	44.14 mm (1.74 in.) x 236.89 mm (9.33 in.) x 207.27 mm (8.16 in.)
Unit Weight	1.54 kg (3.4 lbs.)
Shipping Weight	2.27 kg (5 lbs.)
Controls
IMP Switch	PA Out Mic/line switch. Up- Line, nominal -13dBu / Down-Mic, nominal -59dBu
Indicators
Power / Status LED	Solid Green under normal operation. Flashes Green when uploading tours or firmware updates.
DCP Port Green LED	Solid Green, physical link established. Flashing Green, data transfer.
Interconnections - Rear Panel
Power	Molex CONN HEADER R/A 4POS 5.7MM
GPS	RJ-11, Dedicated connection to LN-050-GPSR GPS receiver.
HDMI	(High Definition Multimedia Interface) Connects to HDMI enabled monitor for displaying video segments.
USB	Type A 2.0 female
DCP	RJ-45, Dedicated port for LN-075-DCP Display Control Panel connection.
ANT	SMA Antenna, Female for Wi-Fi Control.
Audio - In
Nominal Level	-10dBu
Max Level	+13dBu
Noise Floor	-75dBu
Dynamic Range	88dB
Impedance	3K Ohms
Frequency Response	+/-1dB from 20Hz to 20KHz
Signal-to-Noise Ratio	65dB
Total Harmonic Distortion	< 0.05 @ 1KHz
Audio - Mic A & B
Nominal Level	-45dBu to -35dBu
Max Level	-19dBu
Impedance	100K Ohms
Frequency Response	+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion	0.04% @ 1KHz
Audio - PA Out
Nominal Level	-22dBu
Max Level	-10dBu
Noise Floor	-69dBu
Dynamic Range	59dB
Frequency Response	+/-4dB from 20Hz to 15KHz
Total Harmonic Distortion	< 0.2% @ 1KHz
Audio - Out
Nominal Level	-15dBu
Max Level	-3dBu
Noise Floor	-75dBu
Dynamic Range	72dB
Frequency Response	+/-1dB from 20Hz to 20KHz
Total Harmonic Distortion	< 0.1 % @ 1KHz
AC Power Supply (LA-211-0X)
AC Power Supply Input	120 - 240VAC, 50/60Hz, 2.5A
AC Power Supply Output	24VDC, 10A
Connector	Molex CONN RCPT HSG 4POS 5.70MM
Fuse	20A Blade Fuse, ATO (Regular).
Compliance	FCC, CE
DC Power Cable (LNA-040-PC)
Connector	Molex CONN RCPT HSG 4POS 5.70MM
Fuse	20A Blade Fuse, ATO (Regular).
Cable Length	183cm (72 in.)
Environmental
Temperature - Operating	0 C to +40 C (32 F to +104 F)
Temperature - Storage	-20 C to +50 C (-4 F to +122 F)
Relative Humidity	0 - 95%, Non condensing
Compliance
Standards	FCC, IC, RoHS, TUV, CE
Server
Programming	Via Cloud Software: Navilution Cortex software for route building and content management.
Max Channels	16
Audio Media File Format	mp3, 128kbps, mono
Audio Bit Depth	16 Bit
Audio Sampling Rate	44.1KHz
Video Media File Format	MP4
Max Trigger points	120 per route
Wi-Fi Control	2.4Ghz HTTP
