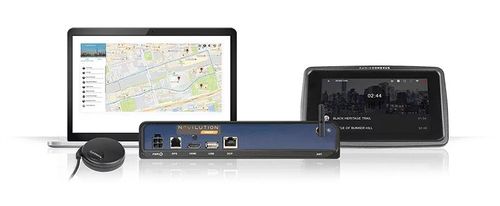

Listen Technologies Navilution NEXT System - LNS-200N-01
Description
Navilution NEXT System
The Navilution NEXT System is a GPS triggered commentary system with up to 16 channels for simultaneous delivery of audio to passengers in different languages and topics. This NEXT system includes 16 RCA phono outputs that can be connected to the inputs of RF transmitters available from various manufacturers. Passengers use RF receivers to listen one of the 16 channels and adjust volume. The system includes a display control panel and external GPS antenna/receiver for reliable GPS triggering. Route planning, GPS triggers and tour development is simple and easy using Navilution Cortex, a proprietary cloud-based software tool. For audio tour development, there is basic, advanced and creative tour development training and Listen tour development partners that can help in the development of your audio tour. The system also supports video delivery to an onboard monitor to enhance passenger experience and can be used for ASL.
The Display Control Panel (“DCP”) is an external display that improves safety and reduces drivers and captains’ distractions. Displaying the elapsed time of audio tour commentary, drivers and captains manage route timing without slowing down or speeding up. The easy to read touch screen shows the audio commentary playlist, with play, pause, and stop features for guides. Users access safety and emergency announcements, off-route audio commentary, and quickly set the language to play over the public address system’s speakers using one-finger touches.
Includes- One (1) LN-200N Navilution NEXT Server
- One (1) LN-075-DCP Navilution Display Control Panel
- One (1) LN-050-GPSR Navilution GPS Receiver
- One (1) LNA-048-POE Listen Navilution SCI V2.0 POE Power
- One (1) Quick Start Guide
- Cortex – Cloud-based Tour Development Software
- GPS triggered commentary system with up to 16 channels for simultaneous delivery of audio to passengers in different languages and topics.
- Source of audio for distribution over a PA system or an existing delivery system accepting analogue audio signals.
- Proprietary Cortex cloud-based tour development software makes it simple, easy and fast to build audio tours. Basic, advanced and creative tour design training available or tour development partners can create your tours.
- HDMI video delivery of story supporting visual experience or ASL for the hearing impaired and deaf.
- Display Control Panel (DCP) enable the operator to start/stop tours.
- Local audio-video integration sales, installation and support.
Specifications
This specification only details the specification of the LN-200N server. For specifications of the other components of this system, please go to the product page of that component.
| Physical | |
| Dimensions (H x W x D) | 44.14 mm (1.74 in.) x 236.89 mm (9.33 in.) x 207.27 mm (8.16 in.) |
| Unit Weight | 1.54 kg (3.4 lbs.) |
| Shipping Weight | 2.27 kg (5 lbs.) |
| Controls | |
| IMP Switch | PA Out Mic/line switch. Up- Line, nominal -13dBu / Down-Mic, nominal -59dBu |
| Indicators | |
| Power / Status LED | Solid Green under normal operation. Flashes Green when uploading tours or firmware updates. |
| DCP Port Green LED | Solid Green, physical link established. Flashing Green, data transfer. |
| Interconnections - Rear Panel | |
| Power | Molex CONN HEADER R/A 4POS 5.7MM |
| GPS | RJ-11, Dedicated connection to LN-050-GPSR GPS receiver. |
| HDMI | (High Definition Multimedia Interface) Connects to HDMI enabled monitor for displaying video segments. |
| USB | Type A 2.0 female |
| DCP | RJ-45, Dedicated port for LN-075-DCP Display Control Panel connection. |
| ANT | SMA Antenna, Female for Wi-Fi Control. |
| Audio - In | |
| Nominal Level | -10dBu |
| Max Level | +13dBu |
| Noise Floor | -75dBu |
| Dynamic Range | 88dB |
| Impedance | 3K Ohms |
| Frequency Response | +/-1dB from 20Hz to 20KHz |
| Signal-to-Noise Ratio | 65dB |
| Total Harmonic Distortion | < 0.05 @ 1KHz |
| Audio - Mic A & B | |
| Nominal Level | -45dBu to -35dBu |
| Max Level | -19dBu |
| Impedance | 100K Ohms |
| Frequency Response | +/-1dB from 20Hz to 20KHz |
| Total Harmonic Distortion | 0.04% @ 1KHz |
| Audio - PA Out | |
| Nominal Level | -22dBu |
| Max Level | -10dBu |
| Noise Floor | -69dBu |
| Dynamic Range | 59dB |
| Frequency Response | +/-4dB from 20Hz to 15KHz |
| Total Harmonic Distortion | < 0.2% @ 1KHz |
| Audio - Out | |
| Nominal Level | -15dBu |
| Max Level | -3dBu |
| Noise Floor | -75dBu |
| Dynamic Range | 72dB |
| Frequency Response | +/-1dB from 20Hz to 20KHz |
| Total Harmonic Distortion | < 0.1 % @ 1KHz |
| AC Power Supply (LA-211-0X) | |
| AC Power Supply Input | 120 - 240VAC, 50/60Hz, 2.5A |
| AC Power Supply Output | 24VDC, 10A |
| Connector | Molex CONN RCPT HSG 4POS 5.70MM |
| Fuse | 20A Blade Fuse, ATO (Regular). |
| Compliance | FCC, CE |
| DC Power Cable (LNA-040-PC) | |
| Connector | Molex CONN RCPT HSG 4POS 5.70MM |
| Fuse | 20A Blade Fuse, ATO (Regular). |
| Cable Length | 183cm (72 in.) |
| Environmental | |
| Temperature - Operating | 0 C to +40 C (32 F to +104 F) |
| Temperature - Storage | -20 C to +50 C (-4 F to +122 F) |
| Relative Humidity | 0 - 95%, Non condensing |
| Compliance | |
| Standards | FCC, IC, RoHS, TUV, CE |
| Server | |
| Programming | Via Cloud Software: Navilution Cortex software for route building and content management. |
| Max Channels | 16 |
| Audio Media File Format | mp3, 128kbps, mono |
| Audio Bit Depth | 16 Bit |
| Audio Sampling Rate | 44.1KHz |
| Video Media File Format | MP4 |
| Max Trigger points | 120 per route |
| Wi-Fi Control | 2.4Ghz HTTP |
