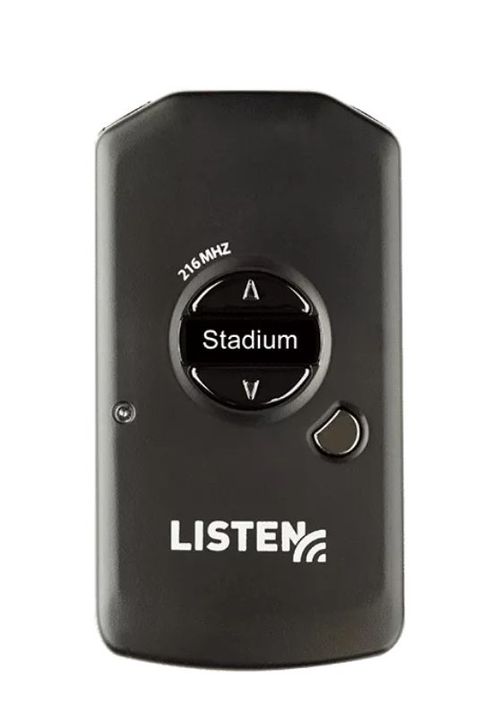

Listen Technologies Advanced Intelligent DSP RF Receiver (216 MHz) - LR-5200-216
Description
Advanced Intelligent DSP RF Receiver (216 MHz)
The LR-5200-216 RF receiver from Listen Technologies is an outstanding choice for any venue that needs to provide assistive listening users with high-performance audio in a compact device. Featuring best-in-class pickup and reduced noise, the LR-5200-216 gives theaters, lecture halls, houses of worship, and other venues an affordable, simple solution when adding or expanding an assistive listening system.
The built-in rechargeable battery technology makes the LR-5200-216 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple with free iDSP software firmware updates, setup, and programming.
The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-216 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.
From classrooms to conferences, businesses to banquet halls, and more, the LR-5200-216 makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.
Includes- One (1) LR-5200-216 Advanced Intelligent DSP RF Receiver (216 MHz)
- Quick start guide
- Non-proprietary field replaceable Lithium-ion battery
- High-performance, ultra-sensitive RF personal listening receiver offering the best reception and lowest noise in its class
- Compact design—the smallest of its kind—makes it easier to wear, dispense, store, and maintain
- Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
- Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
- OLED display offers at-a-glance information including channel status, battery level, volume, and more
Specifications
| System Distortion | < 2% total harmonic distortion (THD) at 80% deviation |
| Output/s | Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm |
| System Frequency Response | 50 Hz - 15 kHz (±3 dB) |
| System Signal to Noise Ratio | SQ enabled 70 dB, SQ disabled 50 dB |
| User Controls | Power, up/down volume, Listen button for end user channel selection |
| Programming | Via software and USB port |
| Set-up Controls | Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel |
| LEDs | White, illuminated when unit is on, flashes when batteries are low or to indicate charging, solid when fully charged |
| Display | Channel designation, battery level, unit number, charging status |
| Frequency Range | 216.0125 - 216.9875MHz |
| Number of Channels | 19 wide band, 38 narrow band |
| Sensitivity | .6uV typical, 1 uV maximum for 12 dB sinad |
| Frequency Accuracy | ± .005% stability 32 to 122 ºF (0 to 50 ºC) |
| Squelch | Programmable in 20 steps, automatic on loss of RF signal |
| Antenna Type | Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable |
| Power Supply | Micro USB connector, 5 V, 500 mA |
| Battery Type | Lithium-ion |
| Battery Life | 8 Hours of continuous use |
| Battery Charging Time | Fully charged in 2 Hours |
| Color | Dark Grey |
| Unit Weight with Batteries | 2.4 oz (68.1 g) |
| Shipping Weight | 3.2 oz (90.8 g) with 16 oz (454 g) minimum |
| Dimensions (H x W x D) | 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm) |
| Unit Weight | 1.6 oz (45.4 g) |
| Dimensions with Belt Clip | 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm) |
| Temperature - Operation | 14 to 104 ºF (-10 to 40 ºC) |
| Temperature - Storage | (-)4 to 122 °F (-20 to 50 °C) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| Standards | FCC Part 15, Part 90, Industry Canada, RoHS |
