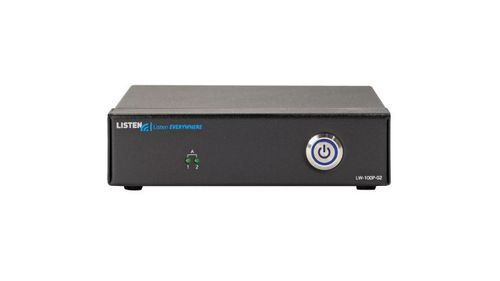

Listen Technologies Listen EVERYWHERE 2 Channel Wi-Fi Audio Server - LW-100P-02-01

Listen Technologies Listen EVERYWHERE 2 Channel Wi-Fi Audio Server - LW-100P-02-01

Part Number: LW-100P-02-01
Our Price: $1,149.00
Availability: Usually ships the same business day
-
+

Description

Listen EVERYWHERE 2 Channel Wi-Fi Audio Server

The Listen EVERYWHERE LW-100P-02 is an affordable and reliable way to deliver 2 channels of audio to audiences of up to 1000 users. Connect to your existing Wi-Fi network and stream low latency audio directly to guests’ devices using the free mobile app, or by providing Wi-Fi Audio Receivers at your venue to meet ADA compliance. Cloud-based management allows for simple management of the server and listening devices, including supporting custom welcome message videos or logos, sliding banners, and more, all providing another point of contact with your clients and customers. Experience great quality audio and industry leading low latency audio at your venue with a 2 channel Wi-Fi Audio Server.

Includes
  • One (1) LW-100P-02 Listen EVERYWHERE 2 Channel Wi-Fi Audio Server w/Power Supply
  • One (1) 1.83M (6 ft.) RCA Cable
  • One (1) 1.83M (6 ft.) CAT6 Cable
Key Features
  • Consumer and Professional inputs
  • Uses existing wireless network (Wi-Fi)
  • Low latency (see demo video)
  • ADA compliant (with receivers and neck loops)
  • Stream audio to venue provided receivers and guest devices
  • 2 channels per server (stackable)
  • Up to 1000 users
  • Great quality and reliability
  • Simple to setup
  • Low power consumption
  • Heavy-duty chassis

Specifications

Balanced Audio InputsTerminal Blocks: Two analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm
RCA Audio InputsRCA: Two analog inputs, rear panel, one dual summing RCA connector per input, unbalanced, -10 dBu (line) nominal input level, +2 dBu maximum input level, impedance 100k ohm
*Stereo operation requires the use of both inputs
EthernetRJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.
USBType A 2.0 (female)
ConnectorDC Barrel Connector
Input Voltage100-240 VAC, 50-60Hz
Output Voltage5 VDC
Current6.0 A
Power30 W
Configurations01= North American Plug B; 02= United Kingdom Plug G; 03= European Union Plug F; 04= Australia Plug I
IP AddressDHCP, Static, Reserved
PrioritizationQoS/ToS
Users1000 (per server)
Max Channels2 mono (1 stereo) - Multiple servers may be used to increase the number of channels.
WAP Support802.11n or better w/WMM enabled
Supported WAP Frequencies2.4 GHz & 5 GHz
Bandwidth Use125 kbps per user
Frequency Response20Hz – 20kHz ±1dB
Dynamic Range86 dB
Signal to Noise Ratio (SNR)74 dB typical (at nominal input levels)
Bit depth16 bits
Sampling Rate48 kHz
Channel SecurityAES-128-CBC
System Latency40 - 80 mS (60 mS average). This can vary per network and mobile device.
Total Harmonic Distortion (THD)<1%
App SupportiOS/Android
Cloud ServiceYes, cloud service is available for remote server maintenance/updates. Cloud service also supports customization of the Android and iOS mobile apps, such as app theme settings, welcome ads, sliding banners, channel logos, channel names, pdf documents, and offers.
Warranty2 years
Dimensions (H x W x D)45mm x 170mm x 117m (1.77in x 6.69in x 4.6in)
Weight.59 kg (1.3 lbs)
Shipping Weight1.6 kg (3.6 lbs)
Rack Space1/2 RU
Temperature - Operation-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity0 to 95% relative humidity, non condensing
Regulatory StandardsUL, FCC, CE, KCC, UKCA
