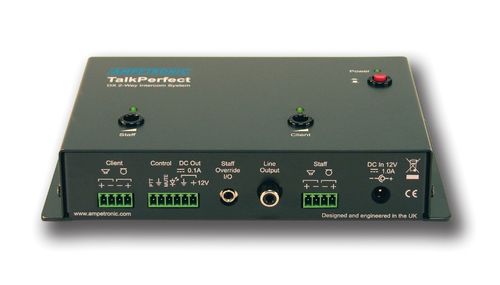

Williams AV TalkPerfect Duplex Amplifier - TP-UX

Description

TalkPerfect Duplex Amplifier

The TalkPerfect TP-UX Duplex Amplifier is designed to improve communication at fixed screen counters. The full duplex system amplifies speech for both customer and staff, minimizing background noise and actively reducing acoustic feedback. The TalkPerfect Duplex Amplifier is typically installed below counter in conjunction with a CLD1 induction loop, providing a fully integrated intercom and control module, with a host of features and accessories for integration into any environment.

Key Features

Full duplex communication
Feedback and echo suppression built in
Staff headset option
Multiple microphone and speaker options
Simple integration to CLD1 loop amplifier
Compact design
All connections are on one panel for ease of installation
Fully adjustable gain on both channels
Low cost of ownership
5 year warranty

Includes

One (1) TP-UX TalkPerfect Duplex Amplifier
One (1) Power Supply
One (1) Six (6) way control connector
Two (2) Four (4) way connector
One (1) Phono to jack cable
One (1) Bag of clips & ties
One (1) TalkPerfect DX handbook

Specifications

Audio
Speaker Output	Two (2) Speaker Outputs< 0.5% THD @ 1kHz with +11dBu (1W into 8?)Bandwidth: 20Hz - 10kHz.Min load: 4?, Max output level:+14dBu
Microphone Input	Two (2) Microphone InputsSuitable for unbalanced electret capsulesDC bias voltage: 6V through 1k?Suitable source: 1k?Input impedance: 8k?Input noise level: -124dBu
Line Output	Unbalanced phono socket for connection to CLD1 line input - cable supplied
Controls
Control Port	LED output connects to combi mic speaker toindicate if system is active i.e. Mute turns LED off.PTT & Mute are active low.+12Vdc for external module supply. 100mA fused
Interconnections
Staff Override	Unbalanced Line I/O using 3.5mm jack socket.Input = Tip, Output = RingInput sensitivity -10dBu with 1k? sourceOutput level max: +4dBu, typical -10dBuOutput Z: 220?
Power
Nominal Voltage	12VDC, Quiescent: 170mA 2W, Maximum: 1.0A 12W
Physical
Shipping Weight	2.0 lbs. (0.91 kg)
Dimensions (H x W x D)	1.75 in. (44 mm) x 7.90 in. (200 mm) x 4.33 in. (110 mm)
Operating Temperature	-10 to +45�C, 20 to 90% humidity
Compliance
Standards	FCC part 15, ICES-3 (B), UL, CUL, CE marked to all relevant safety and EMC standards.
