Williams AV Ampertronic TalkPerfect Speech Transfer Kit 1 - TP-KIT1

Description

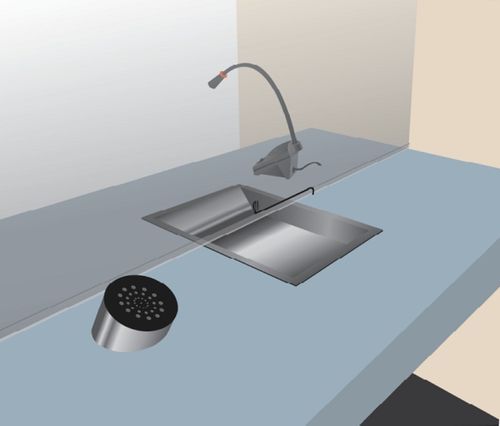

TalkPerfect Speech Transfer Kit 1

The TalkPerfect Speech Transfer System is designed to improve communication at fixed screen security counters. Based on proven, reliable and patented technology, the full duplex (two way) system amplifies speech for both the client and staff while minimizing background noise and actively reducing acoustic feedback. The TalkPerfect Speech Transfer Kit 1 is recommended for optimum audio clarity for both client and staff.

Key Features

Full duplex (two way) Communication
Feedback and echo suppression built in
Multiple microphone and speaker options
Simple integration to CLD1 loop amplifier
Compact design
All connections on one panel for ease of installation
Fully adjustable gain on both channels
Low cost of ownership
5 year warranty

Includes

One (1) TP-DX Talkperfect Duplex Amplifier
One (1) TP-GMM Glass Mount Microphone
One (1) TP-PDS POD Speaker
One (1) TP-CMB400LED Combi Unit

Specifications

Audio
Speaker Output	Two (2) Speaker Outputs < 0.5% THD @ 1kHz with +11dBu (1W into 8?)Bandwidth: 20Hz - 10kHz.Min load: 4?, Max output level:+14dBu
Microphone Input	Two (2) Microphone InputsSuitable for unbalanced electret capsulesDC bias voltage: 6V through 1k?Suitable source: 1k?Input impedance: 8k?Input noise level: -124dBu
Line Output	Unbalanced phono socket for connection to CLD1 line input - cable supplied
Controls
Control Port	LED output connects to combi mic speaker toindicate if system is active i.e. Mute turns LED off.PTT & Mute are active low.+12Vdc for external module supply. 100mA fused
Interconnections
Staff Override	Unbalanced Line I/O using 3.5mm jack socket.Input = Tip, Output = RingInput sensitivity -10dBu with 1k? sourceOutput level max: +4dBu, typical -10dBuOutput Z: 220?
Power
Nominal Voltage	12VDC, Quiescent: 170mA 2W, Maximum: 1.0A 12W
Physical
Shipping Weight	6.0 lbs. (2.73 kg)
Dimensions (H x W x D)	1.75 in. (44 mm) x 7.90 in. (200 mm) x 4.33 in. (110 mm)
Operating Temperature	-10 to +45�C, 20 to 90% humidity
Compliance
Standards	FCC part 15, ICES-3 (B), UL, CUL, CE marked to all relevant safety and EMC standards.
