Williams AV Ampertronic TalkPerfect Speech Transfer Kit 3 - TP-KIT3

Williams AV Ampertronic TalkPerfect Speech Transfer Kit 3 - TP-KIT3

Part Number: TP-KIT3
Our Price: $1,555.00
Availability: Contact us for availability
-
+

Description

TalkPerfect Speech Transfer Kit 3

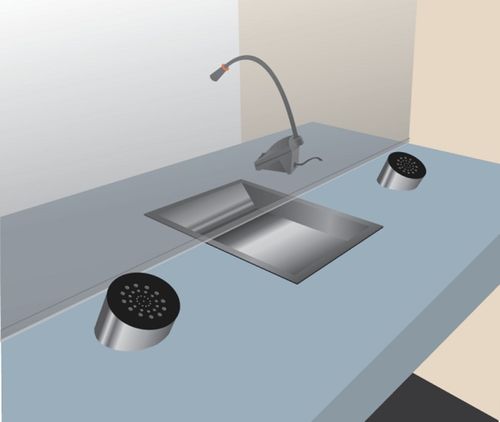

The TalkPerfect Speech Transfer Kit 3 provides optional use of the POD microphone and POD speaker on the client side for aesthetic reasons. The TalkPerfect Speech Transfer System is designed to improve communication at fixed screen security counters. Based on proven, reliable and patented technology, the full duplex (two way) system amplifies speech for both the client and staff while minimizing background noise and actively reducing acoustic feedback.

Key Features
  • Full duplex (two way) Communication
  • Feedback and echo suppression built in
  • Multiple microphone and speaker options
  • Simple integration to CLD1 loop amplifier
  • Compact design
  • All connections on one panel for ease of installation
  • Fully adjustable gain on both channels
  • Low cost of ownership
  • 5 year warranty
Includes
  • One (1) TP-DX Talkperfect Duplex Amplifier
  • One (1) TP-PDM POD Microphone
  • One (1) TP-PDS POD Speaker
  • One (1) TP-CMB400LED Combi Unit

Specifications

Audio
Speaker OutputTwo (2) Speaker Outputs < 0.5% THD @ 1kHz with +11dBu (1W into 8?)Bandwidth: 20Hz - 10kHz.Min load: 4?, Max output level:+14dBu
Microphone InputTwo (2) Microphone InputsSuitable for unbalanced electret capsulesDC bias voltage: 6V through 1k?Suitable source: 1k?Input impedance: 8k?Input noise level: -124dBu
Line OutputUnbalanced phono socket for connection to CLD1 line input - cable supplied
Controls
Control PortLED output connects to combi mic speaker toindicate if system is active i.e. Mute turns LED off.PTT & Mute are active low.+12Vdc for external module supply. 100mA fused
Interconnections
Staff OverrideUnbalanced Line I/O using 3.5mm jack socket.Input = Tip, Output = RingInput sensitivity -10dBu with 1k? sourceOutput level max: +4dBu, typical -10dBuOutput Z: 220?
Power
Nominal Voltage12VDC, Quiescent: 170mA 2W, Maximum: 1.0A 12W
Physical
Shipping Weight7.0 lbs. (3.18 kg)
Dimensions (H x W x D)1.75 in. (44 mm) x 7.90 in. (200 mm) x 4.33 in. (110 mm)
Operating Temperature-10 to +45ºC, 20 to 90% humidity
Compliance
StandardsFCC part 15, ICES-3 (B), UL, CUL, CE marked to all relevant safety and EMC standards.
