NEC NP-PA803U-41ZL LCD Projector

Description

NEC NP-PA803U-41ZL LCD Projector

8000-lumen Professional Installation Projector w/lens

NEC's PA803U is a 8000-lumen widescreen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.

Key Features

4K Ready - HDR10, BT.2020 signal format applicable for use with the “Ultra HD Blu-ray” and “4K TV broadcasting”
Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
High performance video processing/scaling creates life-like images
Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
8000-lumen brightness enhances images for most applications

Specifications

Detailed Specifications
Resolution:	WUXGA (1920 x 1200)
Display Device:	0.76" LCD w/ MLA
Brightness:	8000 Lumens
Contrast Ratio:	10000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to 4K (4096 x 2160)
Aspect Ratio:	16:10
Number of Colors:	Full Color
Lamp:	N/A
Typical Lamp Life:	3000 / 5000 hours (Normal / Eco)
Lens:	Power zoom / Power focus, F=1.7 to 2.0, f= 21.8 to 49.8mm, 4.1 lbs. / 1.85 kg
Throw Ratio:	1.30 - 3.02:1
Image Size:	40" - 500"
Throw Distance:	2.5' - 68.5'
Keystone Correction:	Horizontal / Vertical ±40°
Projection Methods:	Front/Rear, Ceiling Mount/Tabletop

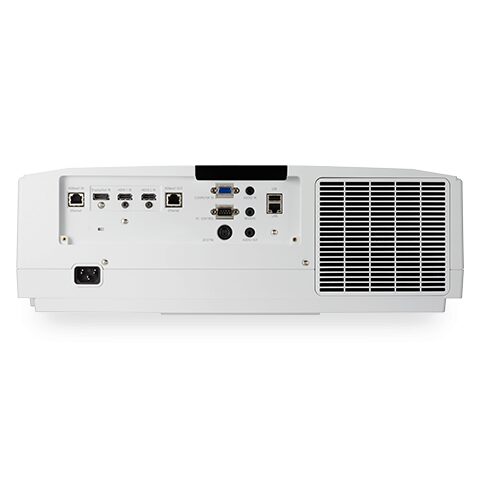

Inputs:	HDMI x 2 DisplayPort x 1 VGA x 1 3.5mm Stereo Audio x 1 RJ45 x 1 RS232 x 1 3D Sync x 1
Outputs:	3.5mm Mini Jack Audio x 1
Speaker:	10W Mono
Audible Noise:	39 dB normal / 33 dB eco
Weight:	22.5 lbs.
Dimensions:	19.8" x 16.2" x 6.6"
Accessories:	Remote control, batteries, power cord, user's manual on CD-ROM, quick start guide, product registration card
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	Registered owners receive a 3-year parts and labor warranty including the first year of InstaCare. The lamp is covered for one year or 500 hours, whichever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
Product Data Sheet:	Product Data Sheet
