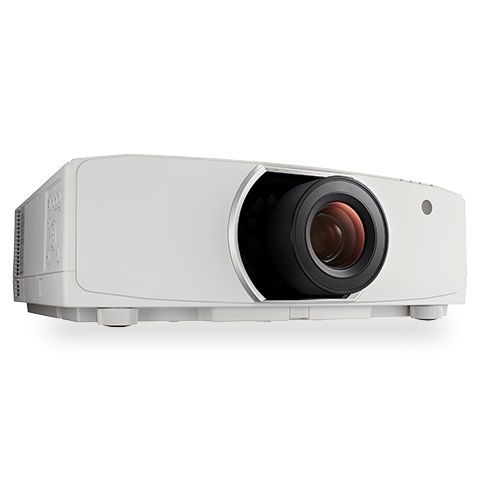

NEC NP-PA903X-41ZL LCD Projector

Description

NEC NP-PA903X-41ZL LCD Projector

9000-Lumen Professional Installation Projector w/ 4K support

NEC's PA903X is a 9000 lumen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.

Key Features

4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from "Ultra HD Blu-ray" and "4K TV broadcasting" are supported on all digital inputs
Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
High performance video processing/scaling creates life-like images
Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
9000-lumen brightness enhances images for most applications

Specifications

Detailed Specifications
Resolution:	XGA (1024 x 768)
Display Device:	0.76" LCD
Brightness:	9000 Lumens
Contrast Ratio:	10000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to 4K (4096x2160)
Aspect Ratio:	4:3
Number of Colors:	Full Color
Lamp:	420W AC
Typical Lamp Life:	3,000/5,000 Hours (Normal/Eco)
Lens:	NP41ZL: Power zoom / Power focus, F=1.7 to 2.0, f= 21.8 to 49.8mm
Throw Ratio:	1.30 - 3.02:1
Image Size:	40" - 500"
Throw Distance:	2.5 - 68.5'
Keystone Correction:	Horizontal/Vertical ±40°
Projection Methods:	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

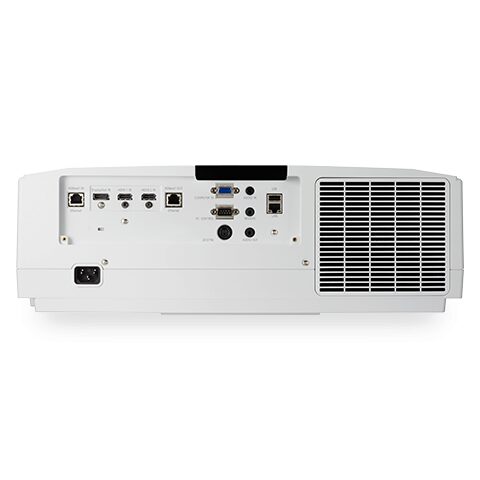

Inputs:	HDMI x 2 DisplayPort x 1 VGA x 1 3.5mm Stereo Audio x 1 RJ45 x 1 RS232 x 1 3D Sync x 1 HDBaseT x 1
Outputs:	3.5mm Mini Jack Audio x 1
Speaker:	None
Audible Noise:	39dB/33dB (Normal/Eco
Weight:	22.5 lbs.
Dimensions:	19.8" x 16.2" x 6.6"
Accessories:	Remote control, batteries, power cord, user’s manual on CD-ROM, quick start guide, product registration card.
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	Registered owners receive a 3-year parts and labor warranty including the first year of InstaCare. The lamp is covered for one year or 500 hours, whichever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
Product Data Sheet:	Product Data Sheet
