Optoma ZU606TST-W Laser Projector

Description

Optoma ZU606TST-W Laser Projector

Short throw, bright, compact and virtually maintenance free

Project from a short distance large Full HD images with the 6,000 lumens Optoma ProScene ZU606TST. The short lens 0.79:1 throw ratio produces a 100-inch image from just a few feet away from the projection surface, the ideal solution for space constrained installations.

Compact size, low weight and quiet operation make it perfect for higher education, corporate board rooms and other professional installations. Vertical lens shift, four corner correction, 360° and portrait mode operation enable flexible installations.

HDMI, HDBaseT and a wide variety of digital and analog I/Os, provide connectivity to virtually any device, including support for high-quality 4K HDR digital video or legacy analog video sources, while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. Stereo speakers with 10W per channel provide rich audio for all-in-one applications while a 12V trigger output ensures compatibility with motorized screens.

Key Features

Bright 6,000 ANSI lumens and WUXGA resolution
4K UHD HDR input with HDMI 2.0 (HDCP 2.2)
0.79:1 short throw ratio
DuraCore maintenance-free laser light source up to 30,000 hours
Vertical lens shift with four corner correction
Integrated HDBaseT and 12v trigger
360° and portrait mode operation

Specifications

Detailed Specifications
Resolution:	WUXGA (1920 x 1200)
Display Device:	0.67" WUXGA DMD
Brightness:	6000 Lumens
Contrast Ratio:	300000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to 4K (4096 x 2160)
Aspect Ratio:	16:10
Number of Colors:	1.07 Billion
Lamp:	DuraCore Laser
Typical Lamp Life:	Up to 30,000 hrs (Eco), 20,000 hours (Normal)
Lens:	F=2.5, f=11.6mm
Throw Ratio:	0.79:1
Image Size:	29" - 305"
Throw Distance:	1.64’- 17.1’
Keystone Correction:	Horizontal/Vertical ±20°
Projection Methods:	Front/Rear; Ceiling Mount/Tabletop

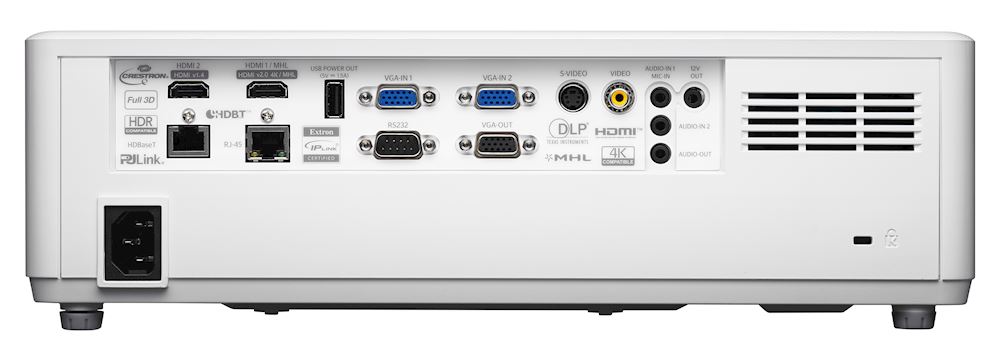

Inputs:	HDMI x 2 (1x MHL compatible) VGA x 2 S-Video x 1 Composite Video (RCA Yellow) x 1 3.5mm Stereo Audio x 2 3.5mm Microphone Input x 1 USB Type A x 1 RJ45 x 2 RS232 x 1 12-Volt Trigger x 1
Outputs:	VGA x 1 3.5mm Mini Jack Audio x 1
Speaker:	10W x 2
Audible Noise:	33db
Weight:	12.3 lbs.
Dimensions:	14.7” x 4.6” x 11.9”
Accessories:	AC power cable, remote, batteries, quick start guide and warranty card
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	5-year or 12,000 hour light source warranty (whichever comes first), 3-year parts and labor limited warranty on the projector.
Product Data Sheet:	Product Data Sheet
